With three choices of rim edge, five load classes, six different widths and four materials on grilles, the system is complete. Multiline covers most professional applications.
The technical trick is the V-profile. ACO Multiline® sets new standards with its channel cross-section. The range is also based on a new idea: a universal channel body can be used for every nominal width and type of edge-rail for load classes A 15 to E 600.
The heart of the innovation is the V-profile. This new channel profile improves the drainage capacity and enhances the self-cleansing effect. The new side wall structure and the intelligent distribution of materials considerably increases the load-bearing strength and the overall stability.

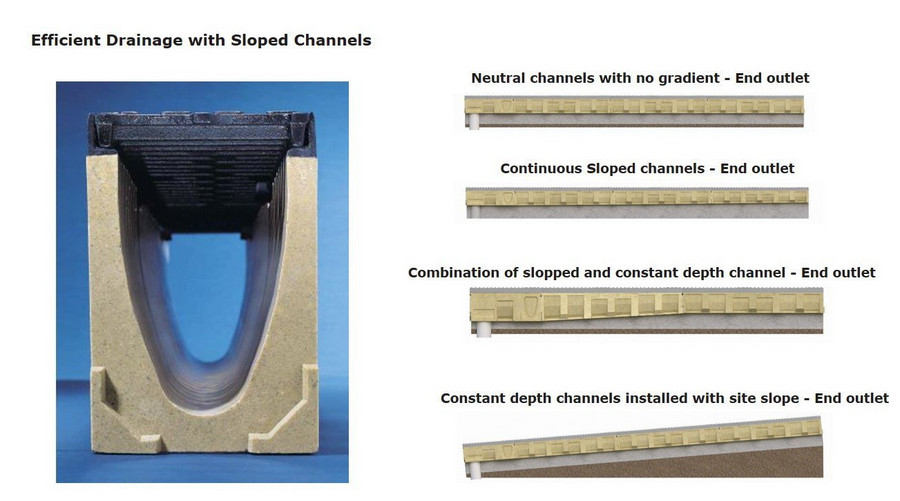

This results in simpler installation even though the system has an extremely high load-bearing capacity. The ACO Multiline® universal system is available with all gradient types which can also be freely combined with one another.
The complete tightness of the channel body right up to the top of the edge rails, and the very smooth surface, increase drainage volumes during extreme storms. The ACO safety rebate ensures that the channel body units are connected to one another with a 100 % watertight seal. The new cast-in lip labyrinth seal ensures that the drainage system can be connected with a watertight seal to the drainage pipe system.
ACO Multiline® easily complies with DIN EN 1433 specifications with a very large safety margin.
Creative and versatile
The ACO Multiline® V 100 – 300 system solutions have a clearly defined programme of gratings suitable for most architectural requirements in terms of aesthetics, functionality and load bearing strength.
The different gratings can be freely com-bined independent of the channel bodies and are available for all load classes from A 15 to E 600.
