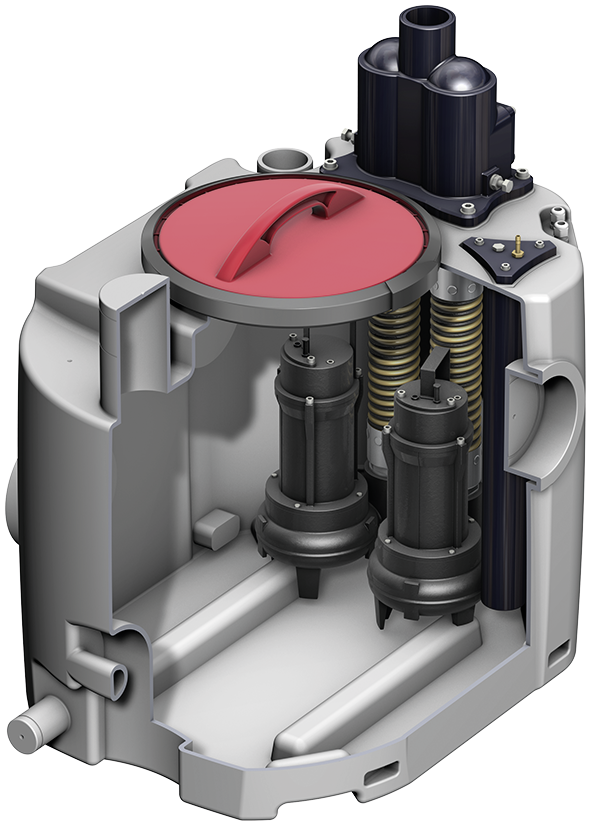

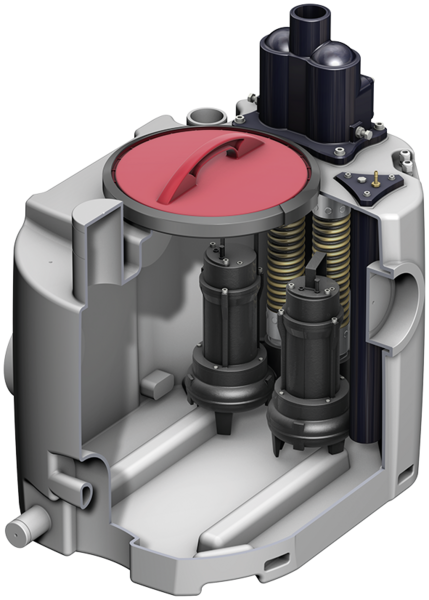

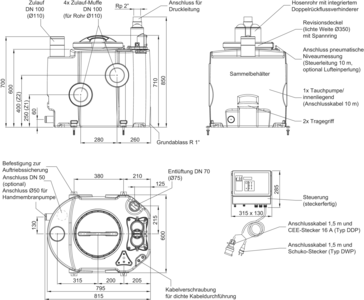

ACO waste water lifting plant Muli-Mini duo
Product benefits
- Ready to connect
- Different inlet heights can be selected
- High usable volume – up to 140 l
- Suitable for installation downstream of grease separators up to NS 4
- Pump can be dismantled without tools
- Designed to fit through narrow doorways 700 mm
- Low weight
Product information
- Areas of application
- Downstream of grease separators up to NS 4
- Laundries
- Rows of showers
- Basement areas
- Polyethylene tank
- Scour outlet R 1"
- Service opening for simple maintenance, diameter: 340 mm
- Fixing kit for attachment against floating
- Connector for hand membrane pump DN 50
- 4 horizontal intake sockets DN 100
- 1 vertical inlet nozzle DN 100
- Optionally 1 vertical inlet nozzle DN 50 (accessory)
- 1 ventilation socket DN 70
- Connection pressure line
- Special backflow stop with ball in housing
- With venting and fixing screw
- Connection: Rp 2"
- 2 grey water underwater pumps
- Version D: With 3-phase submerged motor pump 400 V, 50 Hz
- Version W: With A.C. submerged motor pump 230 V, 50 Hz:
- IP 68 protection / Operation S1 (continuous operation) when pumps are completely submerged
- With blockage-free free flow impeller
- 10 m mains cable
- Level switching
- Pneumatic level switching with 10 m control lines
- Optionally with air bubble injection for increased operational security when installing downstream of grease separators (accessory)
- Controls
- IP 54 protection
- 1.5 m cable and EEC plug (16 A) – version D
- 1.5 m cable and safety plug (16 A) – version W
- Potential-free collective fault message and operating signal
- Tested to DIN EN 12050-2

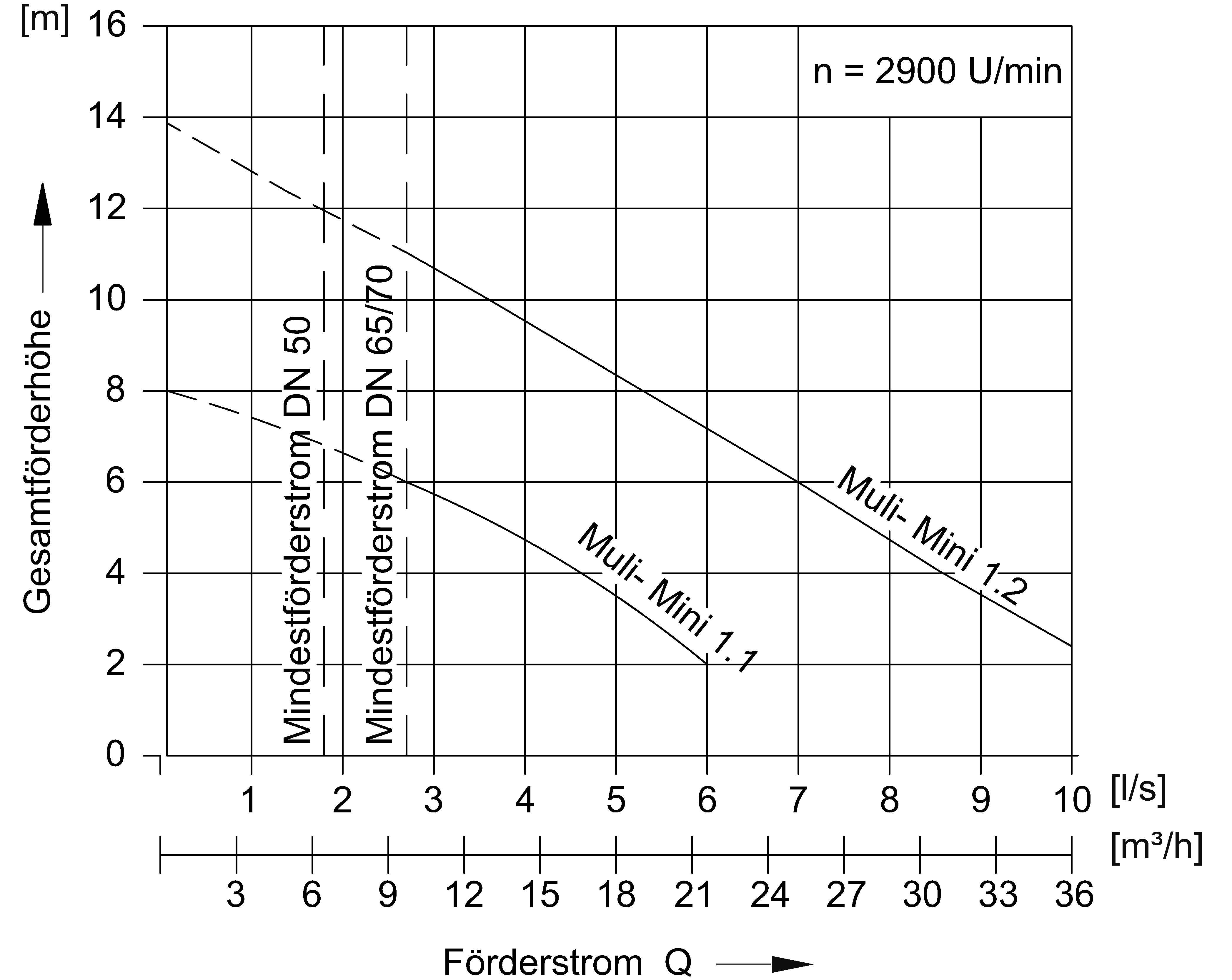

| Type | Motor power | Key data | Granu lation | Usable volume | Total volume | Weight | Item number | ||||||
| P1 | P2 | Current consumption | Volt- age | Rev- count | Inlet height Z 1 | Inlet height Z 2 | Top inlet | ||||||
| [kW] | [kW] | [A] | [V] | [r/min] | [mm] | [l] | [l] | [l] | [l] | [kg] | |||
 | Muli-Mini DDP 1.1 | 0.7 | 0.55 | 1.3 | 400 | 2900 | 40 | 55 | 100 | 130 | 195 | 62 | 1206.00.01 |
 | Muli-Mini DDP 1.2 | 1.5 | 1.1 | 2.6 | 400 | 2900 | 50 | 55 | 100 | 130 | 195 | 71 | 1206.00.02 |
 | Muli-Mini DWP 1.1 | 0.8 | 0.55 | 3.6 | 230 | 2900 | 40 | 55 | 100 | 130 | 195 | 62 | 1206.00.03 |
 | Muli-Mini DWP 1.2 | 1.8 | 1.1 | 8.2 | 230 | 2900 | 50 | 55 | 100 | 130 | 195 | 72 | 1206.00.04 |
| Type | Delivery head | Delivery flow Q with overall delivery head H | Media temperature | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 2 m | 4 m | 6 m | 8 m | 10 m | 12 m | Normal | Maximum | ||
| [m] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [°C] | [°C] | |
| Muli-Mini DDP 1.1 | 2 – 7 | 6.0 | 4.5 | 2.75 | 40 | 65 | |||
| Muli-Mini DDP 1.2 | 2 – 12 | 10.3 | 8.7 | 7.0 | 5.4 | 3.6 | 1.8 | 40 | 65 |
| Muli-Mini DWP 1.1 | 2 – 7 | 6.0 | 4.5 | 2.75 | 40 | 65 | |||
| Muli-Mini DWP 1.2 | 2 – 12 | 10.3 | 8.7 | 7.0 | 5.4 | 3.6 | 1.8 | 40 | 65 |
