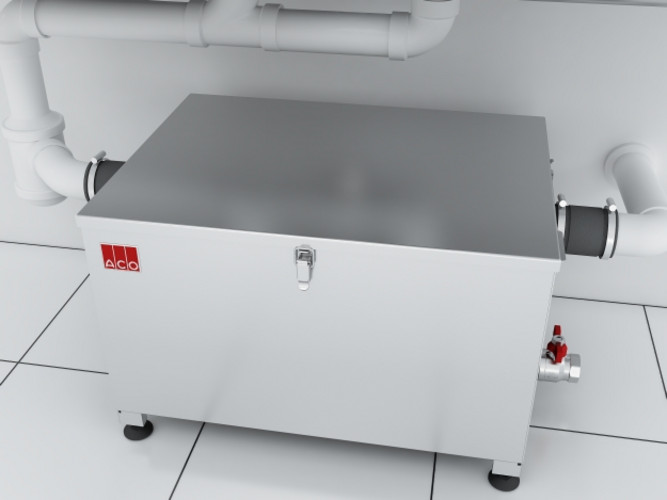

AGT 40 Close View 1

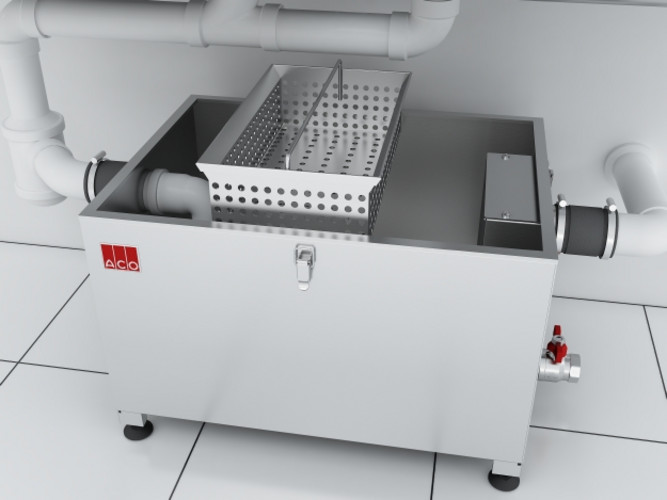

AGT 40 Close View 3 1

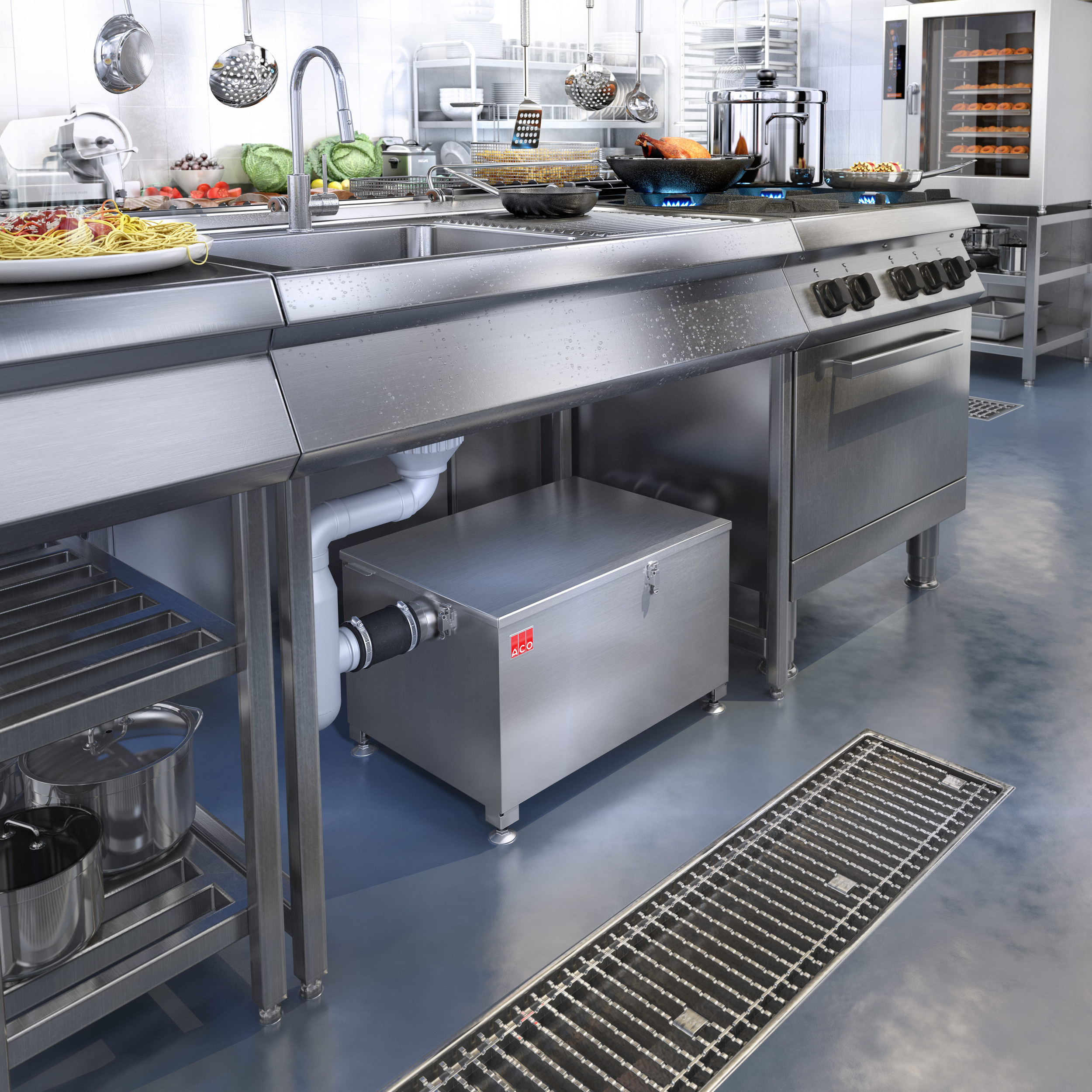

Kitchen Grease Trap 1 1

Product benefits

Protect inner building pipes from fats, oils and grease blockages
Simple to install
Easy to maintain
Hygienic - odour proof and made of Stainless Steel
Overflow protection
Option for separation improvement by addition of food debris removal basket and biological dosing

Compact one-piece construction made from stainless steel
Inner parts made of Stainless steel
Inbuilt flow reducer
Mobile or stationary
Flexible couplings
Drain valve and a sloped bottom

Model name	Inlet & outlet connection	Contents			Weight		Item number
		Silt basket	Grease separation zone	Overall	Empty	Full
		[l]	[l]	[l]	[kg]	[kg]
GT40	1,5" / 2"	5	42	63	16	58	411288.01
GT80	1,5" / 2"	10	83	121	23	106	411290.01
GT120	1,5" / 2"	13	121	161	33	154	411293.01

ACO Agt Technical Drawing 360918

Item number	Description	Dimensions
		L	W	H
		[mm]	[mm]	[mm]
411288.01	GT40	540	400	325
411290.01	GT80	750	500	360
411293.01	GT120	800	500	445

Model name	Inlet & outlet connection	Contents			Weight		Item number
		Silt basket	Grease separation zone	Overall	Empty	Full
		[l]	[l]	[l]	[kg]	[kg]
GT40	1,5" / 2"	5	42	63	16	58	411288.01
GT80	1,5" / 2"	10	83	121	23	106	411290.01
GT120	1,5" / 2"	13	121	161	33	154	411293.01

ACO Agt Technical Drawing 360918

Item number	Description	Dimensions
		L	W	H
		[mm]	[mm]	[mm]
411288.01	GT40	540	400	325
411290.01	GT80	750	500	360
411293.01	GT120	800	500	445
