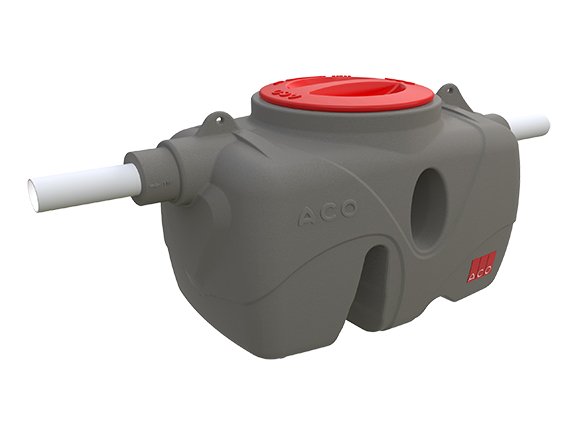

Grease separator LipuMobil-P
Product benefits
- Suitable for flow rates up to 0.8 l/s

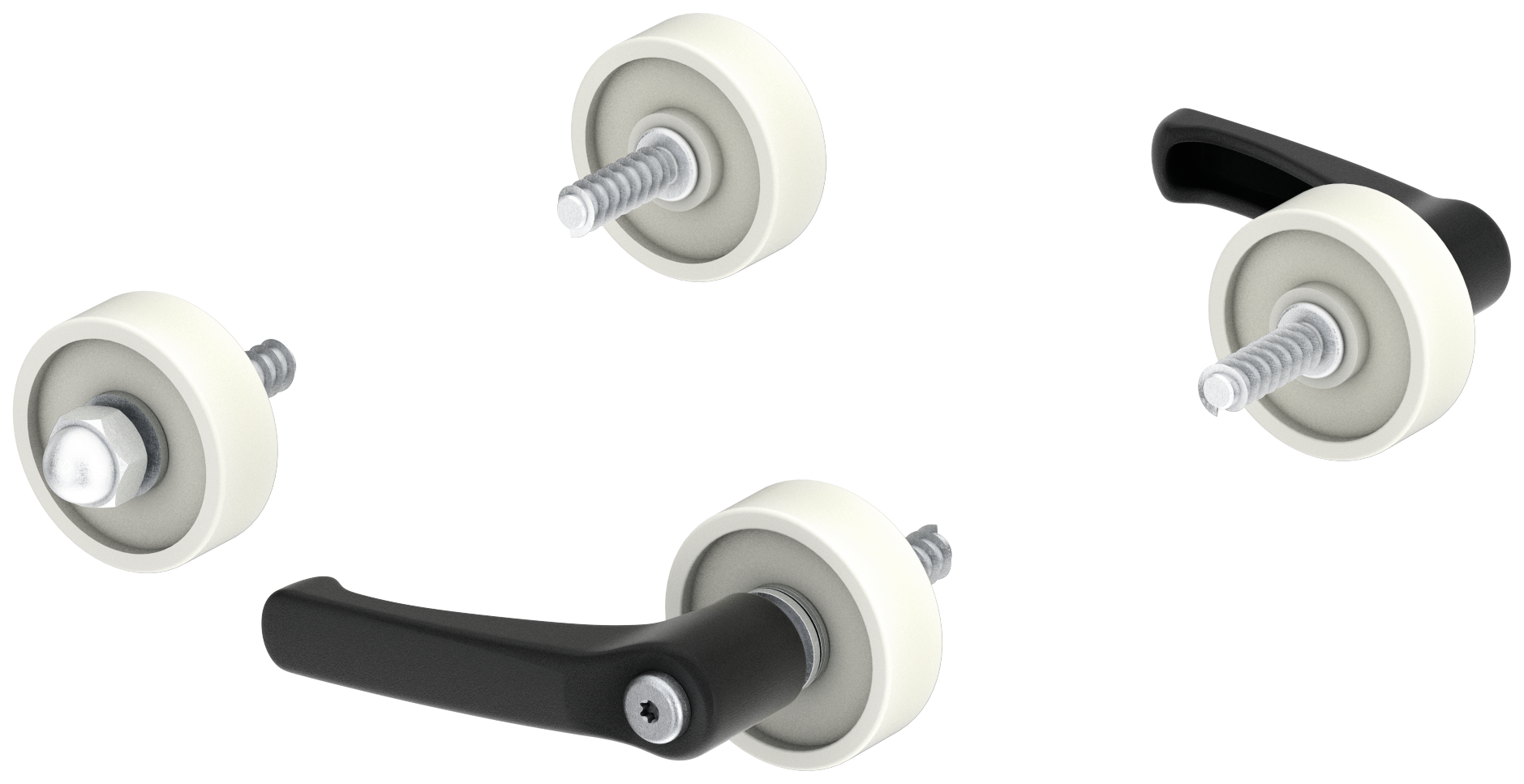

- Optional set of wheels for transportation

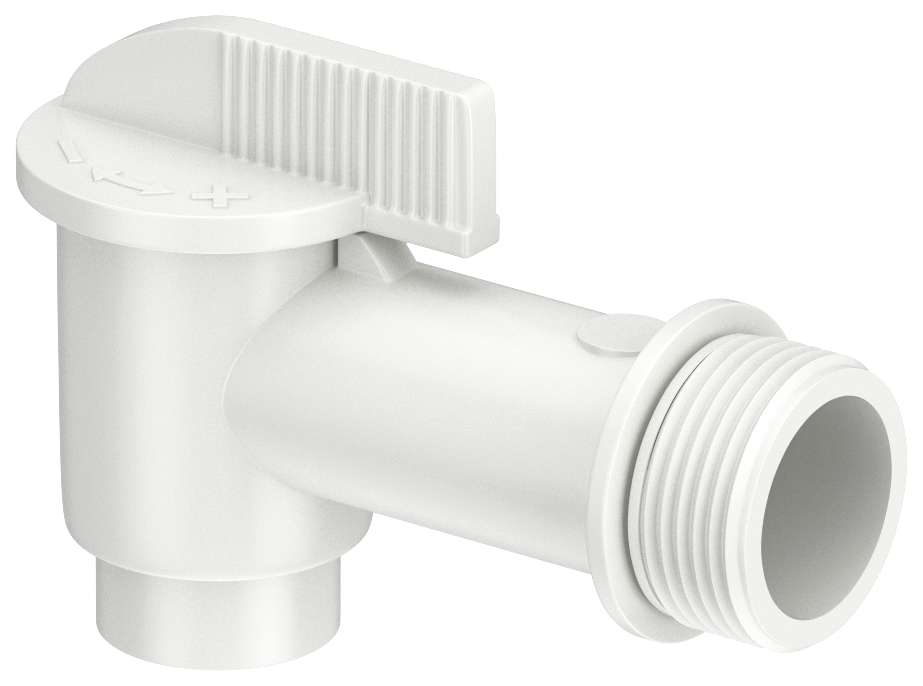

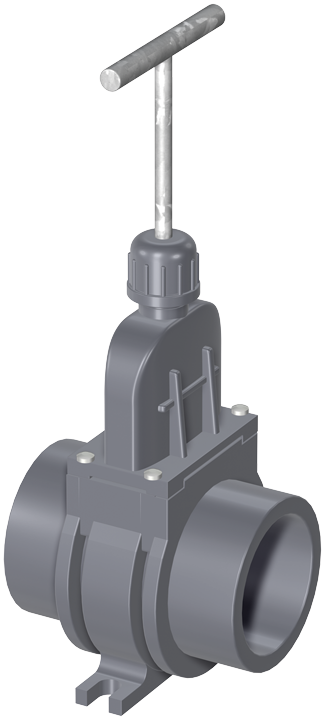

- Optional extraction valve for tank discharge
Product information
- Applications:
- Mobile snack bars
- Mobile dishwashers
- Occasional meal preparation
- For free-standing installation in frost-proof areas, odour-proof sealed, with removable cover and fastening ring
- Inlet and outlet DN 50 (OD 50 mm) for connection with fitting pipe systems
- Total volume: 48 liters
- Grease storage volume: 15 liters
- Sludge storage volume: 16 liters
- Optionally with grease storage tank from PE, mounted at the separator, with discharge pump, volume 10 liters
- German approval Z-54.6-546 (valid only in Germany)
- Type test report for flow rate (NS): 60143586-001
- Suitable for flow rates up to 0.8 l/s
LipuMobil-P-Type 0.3
| Nominal capacity | Nominal width | Contents | Weight | Item number | |||
|---|---|---|---|---|---|---|---|
| Sludge trap | Grease store | Overall | Empty | Full | |||
| [I] | [I] | [I] | [kg] | [kg] | |||
| NS 0.3 | DN 50 | 11 | 10 | 36 | 7.65 | 55 | 155121 |
LipuMobil-P-Type 0.8

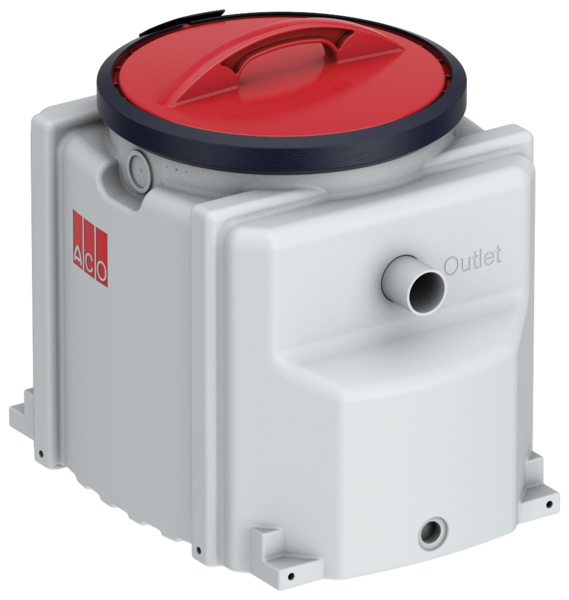

Version: Without grease storage tank
| Nominal width | Contents | Weight | Item number | ||||
|---|---|---|---|---|---|---|---|
| Sludge trap | Grease store | Overall | Empty | Full | |||
| [I] | [I] | [I] | [kg] | [kg] | |||
 | DN 50 | 16 | 15 | 48 | 8 | 60 | 3700.04.00 |

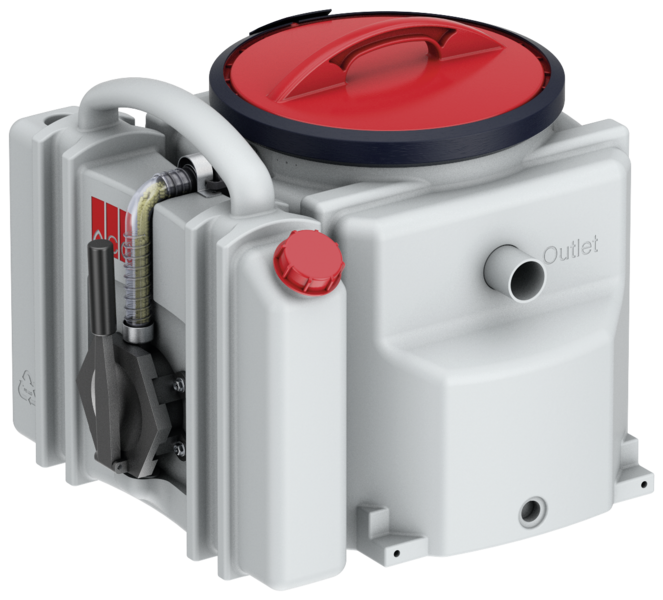

Version: With grease storage tank (operating side right)
| Nominal width | Contents | Weight | Item number | ||||
|---|---|---|---|---|---|---|---|
| Sludge trap | Grease store | Overall | Empty | Full | |||
| [I] | [I] | [I] | [kg] | [kg] | |||
 | DN 50 | 16 | 15 | 48 | 11.5 | 81 | 3700.04.10 |

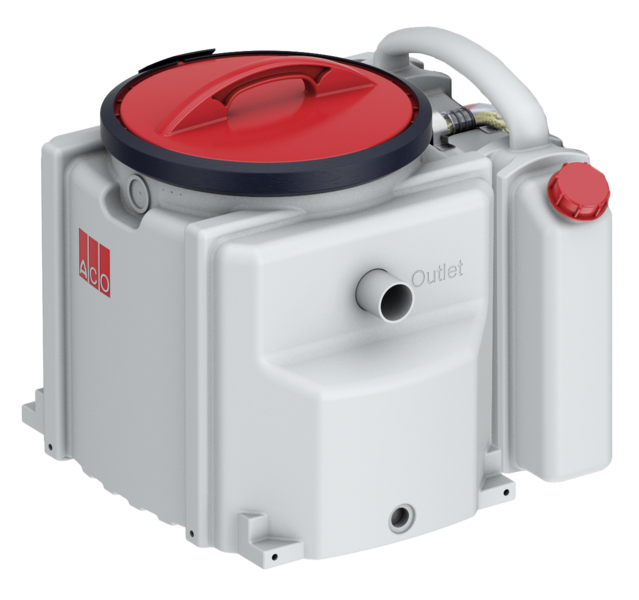

Version: With grease storage tank (operating side left)
| Nominal width | Contents | Weight | Item number | ||||
|---|---|---|---|---|---|---|---|
| Sludge trap | Grease store | Overall | Empty | Full | |||
| [I] | [I] | [I] | [kg] | [kg] | |||
 | DN 50 | 16 | 15 | 48 | 11.5 | 81 | 3700.04.20 |
