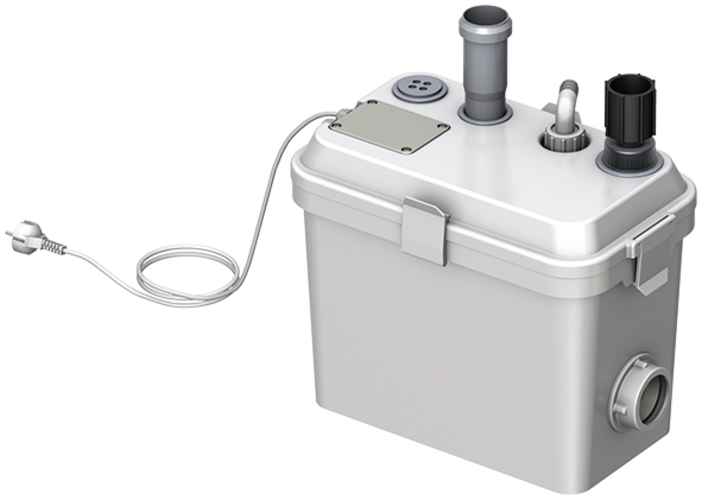

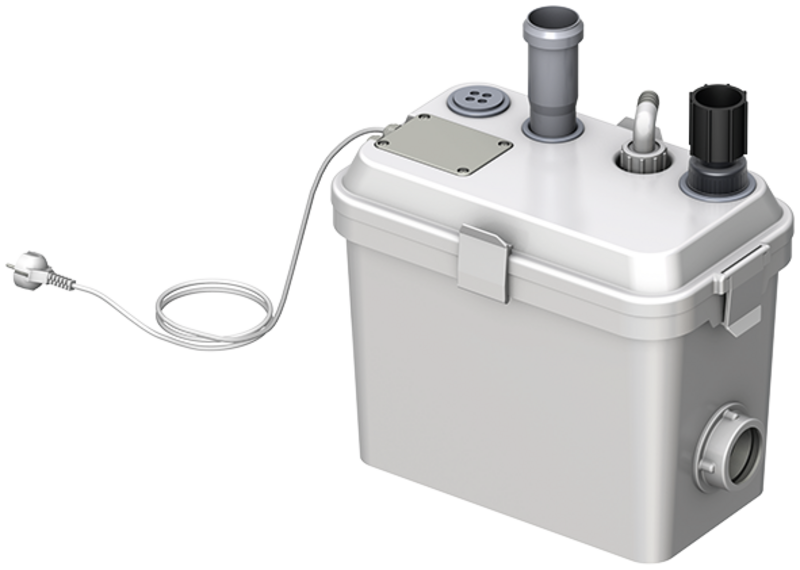

Waste water lifting plant Sinkamat-K1/K2/KD1/KD2

Product benefits

  • Tool-free servicing
  • Compact
  • Ready to connect
  • Acoustic alarm if water reaches impermissibly high level

Product information

  • Applications:
    • For above-floor installation in frostproof premises below the backflow level (basements, hobby rooms and laundry rooms)
    • For domestic grey water, without faecal content, from showers or washbasins
    • *Downstream of water softening plants and for condensate from heating systems (max. salt content: 15%) – only types KD1 & KD2
  • Polypropylene container

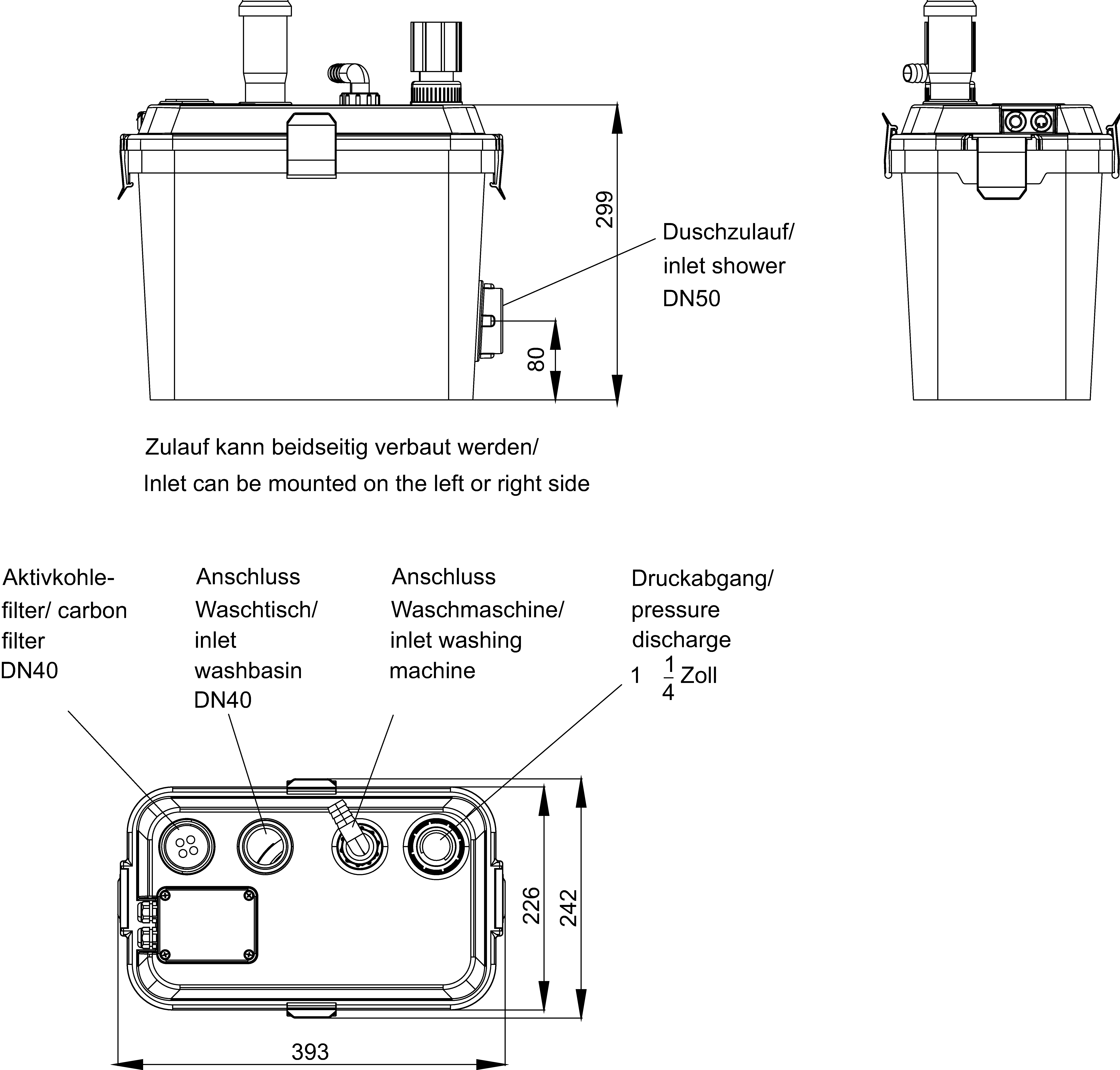

  • With several horizontal and vertical connection options up to DN 50
  • Container ventilation via active carbon filter
  • Grey water submersible pump with robust single phase motor
  • Stainless steel motor housing and shaft
  • Plastic pump housing and impeller
  • Mechanical seal between pump housing and motor
  • 1,5 m connecting cable and Safety plug
  • Float switch (reed contact)
  • Vertical 1¼" pressure discharge with integrated non-return flap
  • Switching device with isolated contact, integrated in container lid
  • Acoustic alarm if water reaches impermissibly high level
  • Degree of protection: IP67
TypeMotor power Key dataUsable volumeTotal

volume
WeightItem

number
P2Current

consumption
Volt-

age
Rev-

count
Inlet

height Z 1
[kW][A][V][r/min][l][l][kg]
K10.131.323028002026662051112
K20.433.723028002026862051212
KD1*0.131.323028002026662051312
KD2*0.433.723028002026862051412

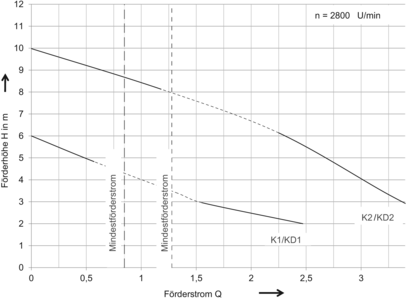

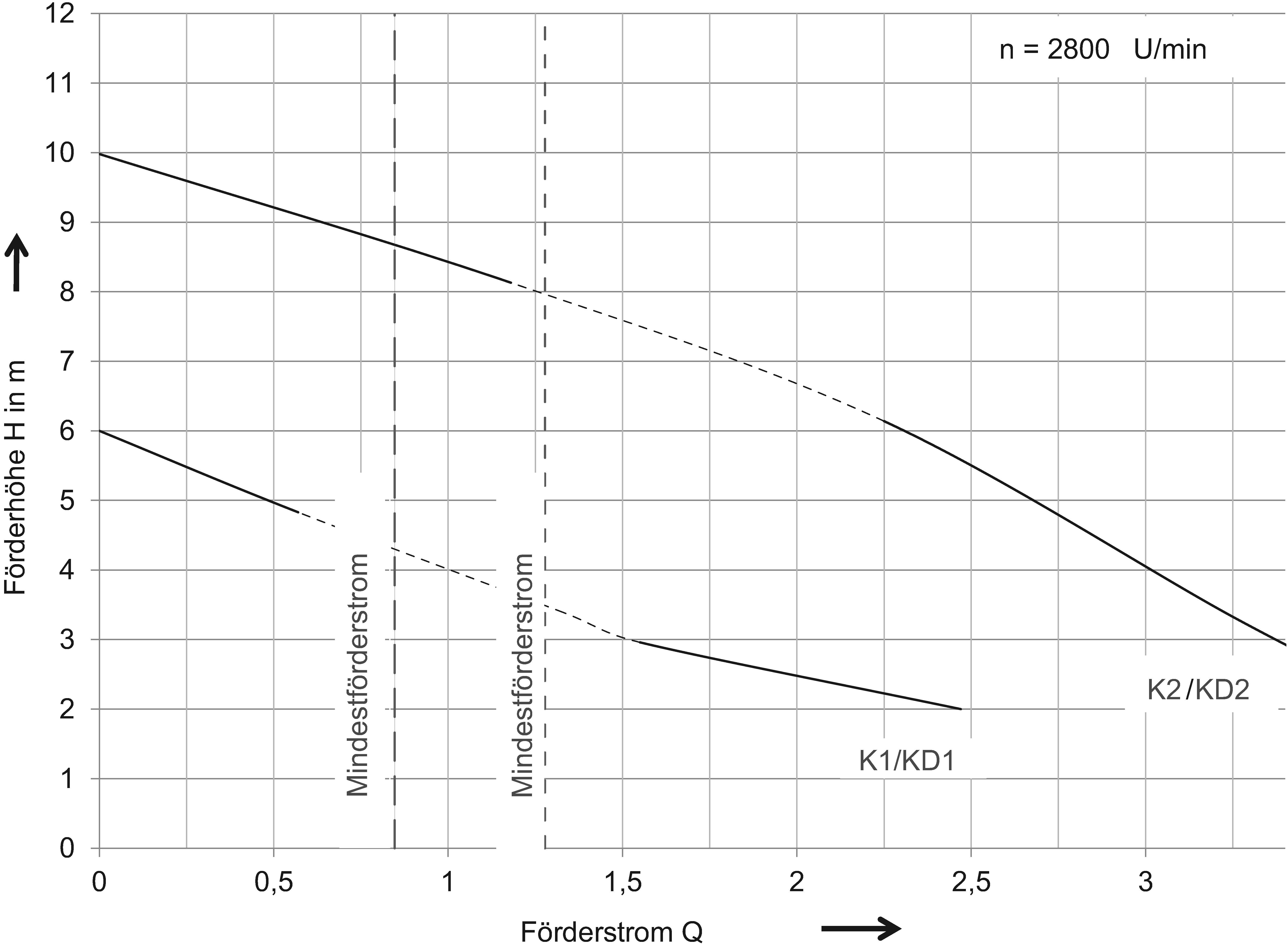

TypeDelivery headDelivery flow Q with overall delivery head HMedia temperature
2 m3 m4 m6 m8 mNormalMaximum
[m][l/s][l/s][l/s][l/s][l/s][°C][°C]
K12 – 4.32.471.521.0 4090
K22 – 8.73.653.353.022.31.254090
KD1*2 – 4.32.471.521.0 4090
KD2*2 – 8.73.653.353.022.31.254090

TypeMotor power Key dataUsable volumeTotal

volume
WeightItem

number
P2Current

consumption
Volt-

age
Rev-

count
Inlet

height Z 1
[kW][A][V][r/min][l][l][kg]
K10.131.323028002026662051112
K20.433.723028002026862051212
KD1*0.131.323028002026662051312
KD2*0.433.723028002026862051412

TypeDelivery headDelivery flow Q with overall delivery head HMedia temperature
2 m3 m4 m6 m8 mNormalMaximum
[m][l/s][l/s][l/s][l/s][l/s][°C][°C]
K12 – 4.32.471.521.0 4090
K22 – 8.73.653.353.022.31.254090
KD1*2 – 4.32.471.521.0 4090
KD2*2 – 8.73.653.353.022.31.254090
