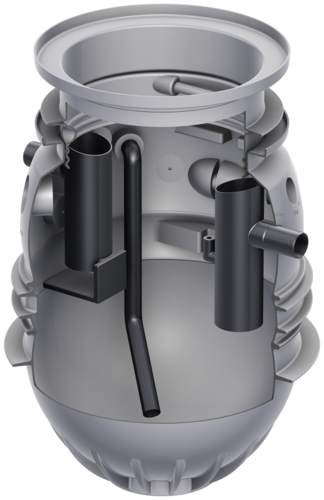

Grease Separator LipuMax-P-D Extension Stage 1

Grease separator LipuMax-P-D extension stage 1

Product benefits

  • For gully top designs for load class D 400, shaft has buoyancy safety up to the upper side of the shaft manhole cover without need for on-site concrete castings.
  • Proven stability: 50 years

Product information

  • Grease separator plant as per DIN EN 1825 and DIN 4040-100
  • For underground installation
  • Cleaning via shaft manhole cover
  • Emptying via suction line DN 65 PN 10
    • With PE couplings for two-sided thread connection 75/75 mm for suction line
    • With fire hose quick coupling 75 B and 2½" blank cap
  • Counter flange with fire hose quick coupling 75 B and 2½" blank cap
  • Suitable top sections
Nominal sizeInlet / OutletContentsWeightItem number
Sludge trapGrease storeOverall
[l][l][l][kg]
NS 2DN 100245270720663202.81.00
460270930813202.81.10
NS 4DN 100460270930813204.81.00
9802701465923204.81.10
NS 5.5DN 1505702301465953205.81.00
106523019601113205.81.10
NS 7DN 15073028516751113207.81.00
NS 8.5DN 15086036019001183208.81.00
NS 10DN 150100541521701283210.81.00

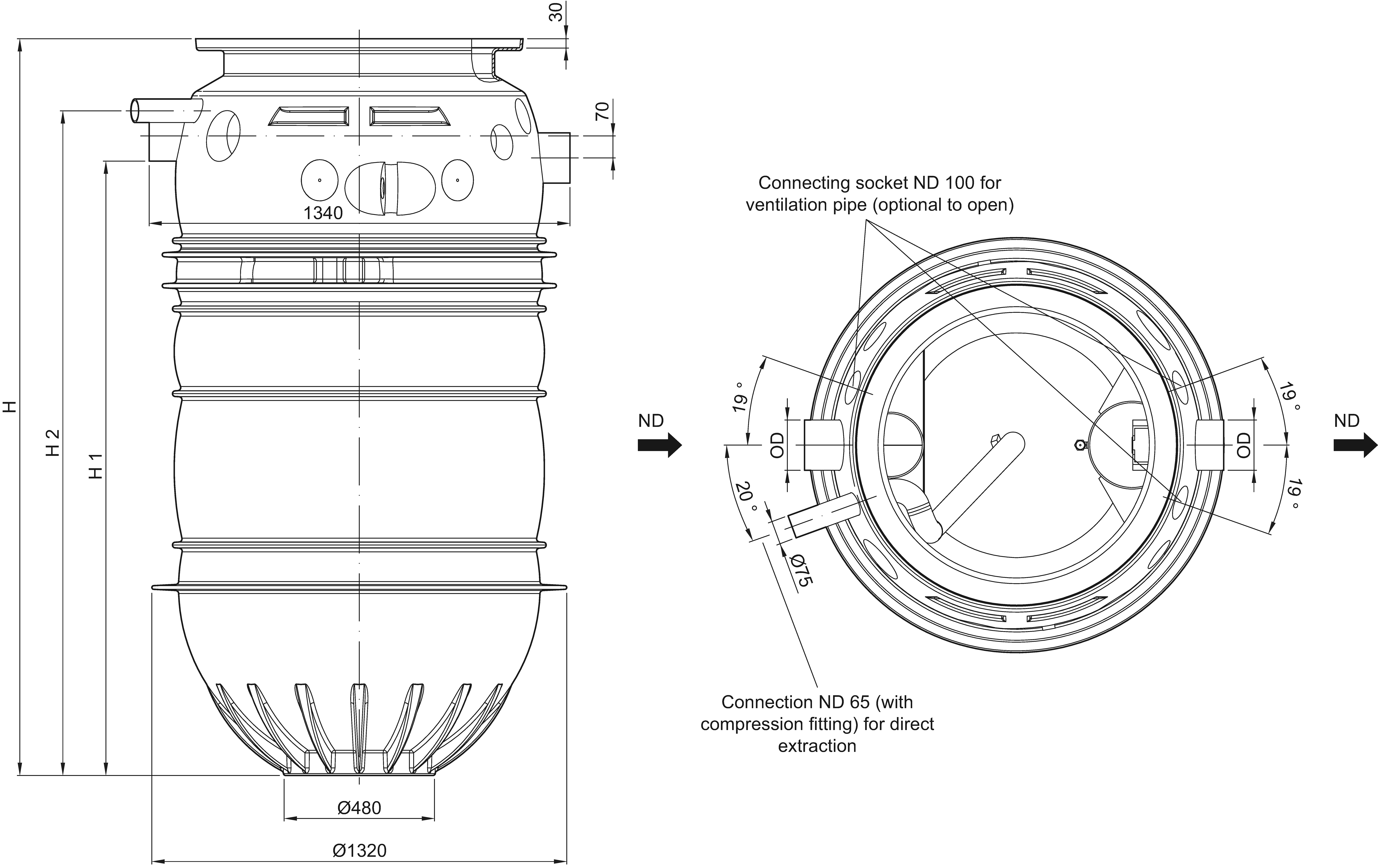

3204.81.00 Neu 121156

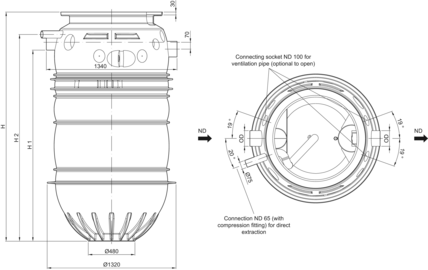

Nominal sizeSludge trapDimensions
DHH1H2
[l][mm][mm][mm][mm]
NS 2245110138010201158
460110159512351375
NS 4460110159512351375
980110213017701910
NS 5.5570160213017451900
1065160261022252382
NS 7730160234519602117
NS 8.5860160256021752329
NS 101005160283024452599
LipuMax-P-B

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning

LipuMax-P-B

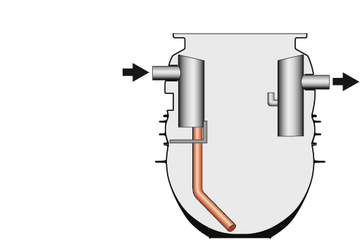

Grease Separator Lipumax- P-D

Features of upgrade level 1:

  • Connection for direct suction
  • Odour build-up only during cleaning

Lipumax- P-D

LipuMax-P-B

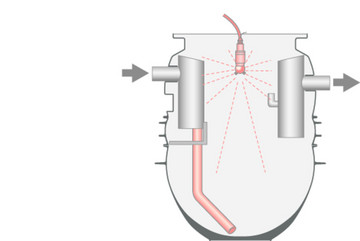

Features of upgrade level 2:

  • Connection for direct suction
  • High pressure cleaning operated manually
  • No odour build-up

LipuMax-P-DM

LipuMax-P-B

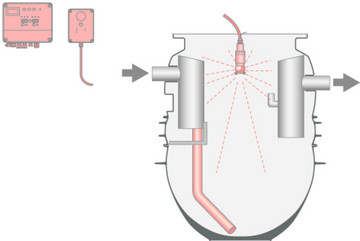

Features of upgrade level 3:

  • Connection for direct suction
  • Completely automatic programme
  • No odour build-up

LipuMax-P-DA

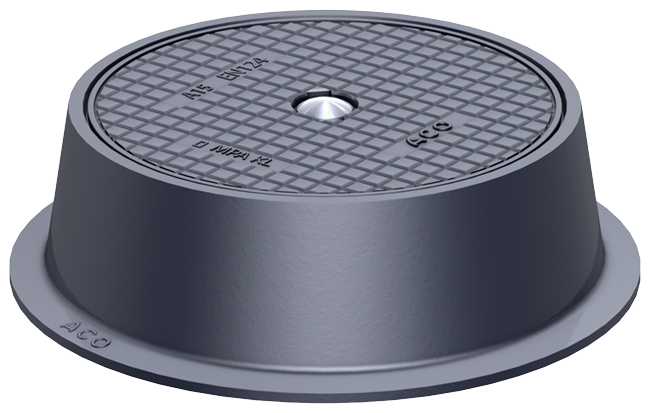

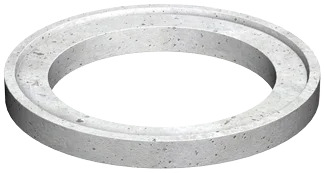

Top sections standard for separators

Top sections standard for separators

Sampling shafts body 800

Sampling shafts body 800

Sampling shafts set 450

Sampling shafts set 450

Disposal shafts

Disposal shafts

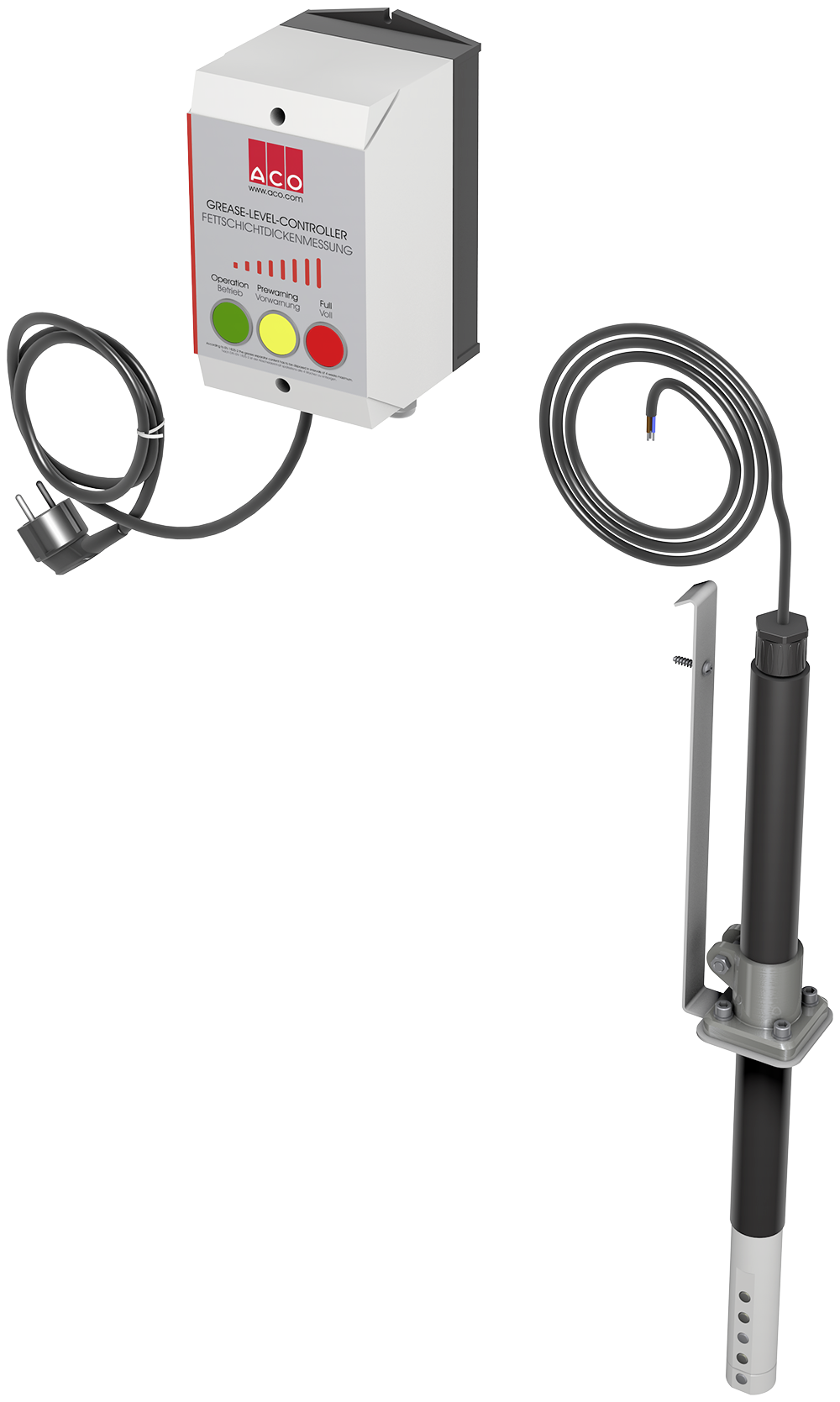

Grease layer thickness measuring device

Image 36850

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P

Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 10 m
  • Weight: 6.4 kg
  • Rabattgruppe: 11

Grease layer thickness measuring device

Image 36850

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P

Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 20 m
  • Weight: 7.8 kg
  • Rabattgruppe: 11

Item no. 3300.11.70

Item no. 3300.11.71

Grease layer thickness measuring device

Image 36850

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P

Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 30 m
  • Weight: 9.6 kg
  • Rabattgruppe: 11

Grease layer thickness measuring device

Image 36850

Suitable for
  • Lipumax P

Description
  • For electronic measurement of the grease layer
  • Suitable for liquid and/or solidifying greases
  • Analyser with ready to plug-in connection cable, length: 3 m
  • With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
  • With visual display of the level for prewarning and full signal
  • With heated probe rod for increasing operating reliability
  • Operating voltage: 230 V/50 Hz
  • Max. consumption approx. 12 W
  • Cable length: 10 m
  • Weight: 2 kg

Item no. 3300.11.72

Item no. 3300.11.70

Grease layer thickness measuring device

Image 36850

Suitable for
  • Lipumax P

Description
  • For electronic measurement of the grease layer
  • Suitable for liquid and/or solidifying greases
  • Analyser with ready to plug-in connection cable, length: 3 m
  • With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
  • With visual display of the level for prewarning and full signal
  • With heated probe rod for increasing operating reliability
  • Operating voltage: 230 V/50 Hz
  • Max. consumption approx. 12 W
  • Cable length: 20 m
  • Weight: 2.5 kg

Grease layer thickness measuring device

Image 36850

Suitable for
  • Lipumax P

Description
  • For electronic measurement of the grease layer
  • Suitable for liquid and/or solidifying greases
  • Analyser with ready to plug-in connection cable, length: 3 m
  • With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
  • With visual display of the level for prewarning and full signal
  • With heated probe rod for increasing operating reliability
  • Operating voltage: 230 V/50 Hz
  • Max. consumption approx. 12 W
  • Cable length: 30 m
  • Weight: 3 kg

Item no. 3300.11.71

Item no. 3300.11.72

Connection box

Image 276432

Suitable for
  • Grease separator
  • Starch separators ,
  • LipuLift-P-D/-DA/-DAP

Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg
  • Rabattgruppe: 11

In-wall frame

Image 276434

Suitable for
  • Connection box
    • 7601.80.24 ,
  • LipuLift-P-D/-DA/-DAP

Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg
  • Rabattgruppe: 11

Item no. 7601.80.24

Item no. 7601.80.25

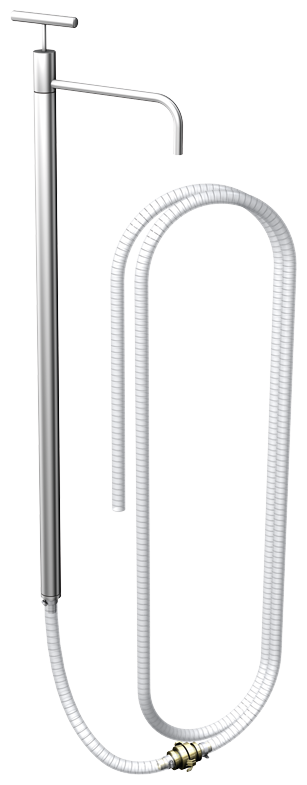

Sampling device

701246 701247 Sampling Device 400064

Suitable for
  • ACO separators
  • Installation depth up to 3000 mm

Description
  • With integrated sampling
  • For taking a sample from the wastewater flow
  • Consisting of:
    • Sampling pump with suction coupling
    • Connection hose with suction coupling and threaded connector
  • Weight: 3 kg

Sampling device

701246 701247 Sampling Device 400064

Suitable for
  • ACO separators
  • Installation depth up to 5500 mm

Description
  • With integrated sampling
  • For taking a sample from the wastewater flow
  • Consisting of:
    • Sampling pump with suction coupling
    • Connection hose with suction coupling and threaded connector
  • Weight: 4.5 kg

Item no. 701246

Item no. 701247

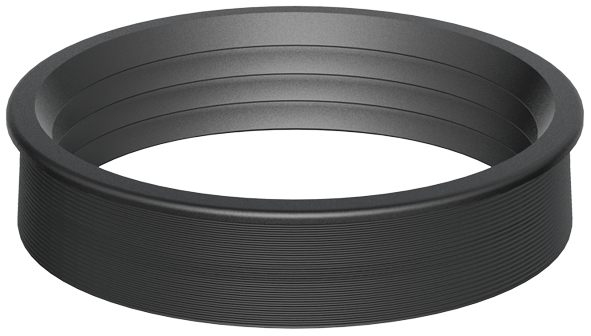

Sealing sleeve DN/OD 110

Image 37024

Suitable for
  • Lipumax P
    • Basic type B
    • Type with direct suction D

Description
  • As seal between ventilation connection on the tank and ventilation pipe
  • Scope of supply: 2
  • Weight: 0.2 kg

Message system with GSM module

0150.46 129588

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets

Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg
  • Rabattgruppe: 12

Item no. 0150.34.32

Item no. 0150.80.14

Connection cable antenna GSM

Image 694390

Suitable for
  • GSM - Modul

Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Connection box

Image 36740

Suitable for
  • Grease separators
  • Starch separators ,
  • LipuLift-P-D/-DA/-DAP

Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg
  • Rabattgruppe: 11

Item no. 0150.83.86

Item no. 7601.80.20

In-wall frame

Image 36738

Suitable for
  • Connection box
    • 7601.80.20 ,
  • LipuLift-P-D/-DA/-DAP

Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg
  • Rabattgruppe: 11

Storz coupling for swinging gas lines

Image 228952

Suitable for
  • For installation in connection box art. no. 7601.80.22

Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg
  • Rabattgruppe: 11

Item no. 7601.80.21

Item no. 0155.32.09

Connection box

Image 36740

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P ,
  • LipuLift-P-D/-DA/-DAP

Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg
  • Rabattgruppe: 11

In-wall frame

Image 36738

Suitable for
  • Connection box
    • 7601.80.22 ,
  • LipuLift-P-D/-DA/-DAP

Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg
  • Rabattgruppe: 11

Item no. 7601.80.22

Item no. 7601.80.23

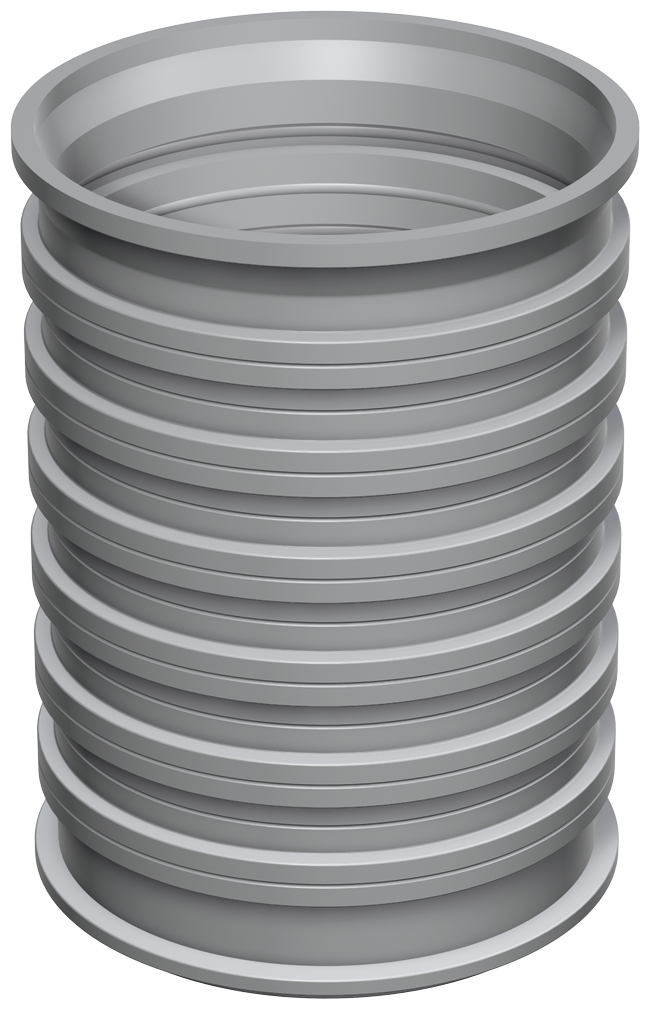

Extension

33001300 67613

Suitable for
  • Disposal shaft
    • Typ 450

Description
  • Made from plastic, material polyethylene
  • For fitting on upstream shaft for deep installations
  • Structure height: 100 – 650 mm
    • (can be reduced to 45 mm by cutting off at cutting marks)
  • Max. two extension can be used
  • Weight: 10.9 kg
  • Rabattgruppe: 11

Sampling device

701246 701247 Sampling Device 400064

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Light oil separator for underground installation
  • Stach seperator FapuMax-P for underground installation

Description
  • Consisting of:
    • Sampling pot with suction coupling
    • Connection hose with suction coupling and connection gland
    • Hose length: 3 m
  • Weight: 3.4 kg
  • Rabattgruppe: 11

Item no. 3301.31.00

Item no. 8800.00.10

Support ring

Image 36736

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation

Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 60 mm
  • Without seal
  • Displacement-proof
  • Height
    • 60 mm excluding mortar joints
    • 70 mm including mortar joints
  • Weight: 50 kg
  • Rabattgruppe: 11

Support ring

Image 36736

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation

Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 80 mm
  • Without seal
  • Displacement-proof
  • Height
    • 80 mm excluding mortar joints
    • 90 mm including mortar joints
  • Weight: 60 kg
  • Rabattgruppe: 11

Item no. 8700.20.00

Item no. 8700.20.10

Support ring

Image 36736

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation

Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 100 mm
  • Without seal
  • Displacement-proof
  • Height
    • 100 mm excluding mortar joints
    • 110 mm including mortar joints
  • Weight: 70 kg
  • Rabattgruppe: 11

Stepox

Description
  • Weight: 5.9 kg
  • Rabattgruppe: 11

Item no. 8700.20.20

Item no. 0150.80.62

Road cap

Image 661922

Suitable for
  • Grease separator for underground installation
    • LipuMax-P-D
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stach separators FapuMax-P-DA for underground installation
  • Oil separators Coalisator-P

Description
  • Shaft cover tested to DIN EN 124/DIN 1229
  • Load class: A 15
  • Frame and cover made of cast iron
  • Diameter: 300 mm
  • Clear width: 250 mm
  • Weight: 9.8 kg
  • Rabattgruppe: 1

Sealing sleeves DN 100 NBR

Image 37024

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P

Description
  • As insulation between air connection on tank and air line.
  • Weight: 0.1 kg
  • Rabattgruppe: 11

Item no. 5354.00.00

Item no. 0150.34.32

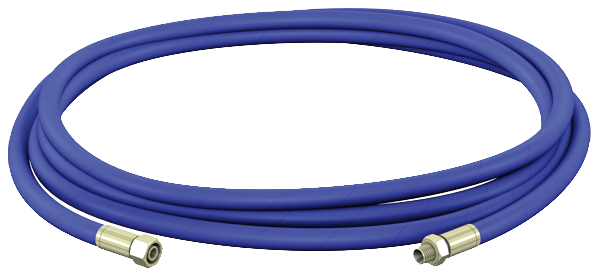

Washing hose 1 SN 10 – 150 DKO/DKO-L-90°

Image 37026

Suitable for
  • Grease separator for underground installation
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stach seperator FapuMax-P-DA for underground installation
  • LipuLift-P-DA/-DAP

Description
  • To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
  • Length: 10 m
  • Weight: 10 kg
  • Rabattgruppe: 11

Washing hose 1 SN 10 – 150 DKO/DKO-L-90°

Image 37026

Suitable for
  • Grease separator for underground installation
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stach seperator FapuMax-P-DA for underground installation
  • LipuLift-P-DA/-DAP

Description
  • To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
  • Length: 20 m
  • Weight: 10.3 kg
  • Rabattgruppe: 11

Item no. 0150.33.62

Item no. 0150.33.63

Washing hose 1 SN 10 – 150 DKO/DKO-L-90°

Image 37026

Suitable for
  • Grease separator for underground installation
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stach seperator FapuMax-P-DA for underground installation
  • LipuLift-P-DA/-DAP

Description
  • To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
  • Length: 30 m
  • Weight: 19 kg
  • Rabattgruppe: 11

Cable feedthrough ND 100

Image 208740

Suitable for
  • LipuMax-P-B / D and LipuLift-P/PF-B / D (In conjunction with an ACO grease layer measurement)
  • LipuMax-P/PH-B/D
  • Muli-Flex

Description
  • Material: V4A
  • For simple and fast sealing of up to 5 cables
  • Seal against pressurised water
  • Interchangeable insert 2x5mm, 2x7mm, 2x16mm, 1x12mm, 1x14mm
  • Weight: 1 kg
  • Rabattgruppe: 11

Item no. 0150.33.64

Item no. 0155.39.81

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation

Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg
  • Rabattgruppe: 11

Item no. 0150.45.23

Nominal sizeInlet / OutletContentsWeightItem number
Sludge trapGrease storeOverall
[l][l][l][kg]
NS 2DN 100245270720663202.81.00
460270930813202.81.10
NS 4DN 100460270930813204.81.00
9802701465923204.81.10
NS 5.5DN 1505702301465953205.81.00
106523019601113205.81.10
NS 7DN 15073028516751113207.81.00
NS 8.5DN 15086036019001183208.81.00
NS 10DN 150100541521701283210.81.00

3204.81.00 Neu 121156
Nominal sizeSludge trapDimensions
DHH1H2
[l][mm][mm][mm][mm]
NS 2245110138010201158
460110159512351375
NS 4460110159512351375
980110213017701910
NS 5.5570160213017451900
1065160261022252382
NS 7730160234519602117
NS 8.5860160256021752329
NS 101005160283024452599

LipuMax-P-B

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning

LipuMax-P-B

Grease Separator Lipumax- P-D

Features of upgrade level 1:

  • Connection for direct suction
  • Odour build-up only during cleaning

Lipumax- P-D

LipuMax-P-B

Features of upgrade level 2:

  • Connection for direct suction
  • High pressure cleaning operated manually
  • No odour build-up

LipuMax-P-DM

LipuMax-P-B

Features of upgrade level 3:

  • Connection for direct suction
  • Completely automatic programme
  • No odour build-up

LipuMax-P-DA

Top sections standard for separators

Top sections standard for separators

Sampling shafts body 800

Sampling shafts body 800

Sampling shafts set 450

Sampling shafts set 450

Disposal shafts

Disposal shafts

Grease layer thickness measuring device

Image 36850

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P

Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 10 m
  • Weight: 6.4 kg
  • Rabattgruppe: 11

Grease layer thickness measuring device

Image 36850

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P

Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 20 m
  • Weight: 7.8 kg
  • Rabattgruppe: 11

Item no. 3300.11.70

Item no. 3300.11.71

Grease layer thickness measuring device

Image 36850

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P

Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 30 m
  • Weight: 9.6 kg
  • Rabattgruppe: 11

Grease layer thickness measuring device

Image 36850

Suitable for
  • Lipumax P

Description
  • For electronic measurement of the grease layer
  • Suitable for liquid and/or solidifying greases
  • Analyser with ready to plug-in connection cable, length: 3 m
  • With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
  • With visual display of the level for prewarning and full signal
  • With heated probe rod for increasing operating reliability
  • Operating voltage: 230 V/50 Hz
  • Max. consumption approx. 12 W
  • Cable length: 10 m
  • Weight: 2 kg

Item no. 3300.11.72

Item no. 3300.11.70

Grease layer thickness measuring device

Image 36850

Suitable for
  • Lipumax P

Description
  • For electronic measurement of the grease layer
  • Suitable for liquid and/or solidifying greases
  • Analyser with ready to plug-in connection cable, length: 3 m
  • With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
  • With visual display of the level for prewarning and full signal
  • With heated probe rod for increasing operating reliability
  • Operating voltage: 230 V/50 Hz
  • Max. consumption approx. 12 W
  • Cable length: 20 m
  • Weight: 2.5 kg

Grease layer thickness measuring device

Image 36850

Suitable for
  • Lipumax P

Description
  • For electronic measurement of the grease layer
  • Suitable for liquid and/or solidifying greases
  • Analyser with ready to plug-in connection cable, length: 3 m
  • With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
  • With visual display of the level for prewarning and full signal
  • With heated probe rod for increasing operating reliability
  • Operating voltage: 230 V/50 Hz
  • Max. consumption approx. 12 W
  • Cable length: 30 m
  • Weight: 3 kg

Item no. 3300.11.71

Item no. 3300.11.72

Connection box

Image 276432

Suitable for
  • Grease separator
  • Starch separators ,
  • LipuLift-P-D/-DA/-DAP

Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg
  • Rabattgruppe: 11

In-wall frame

Image 276434

Suitable for
  • Connection box
    • 7601.80.24 ,
  • LipuLift-P-D/-DA/-DAP

Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg
  • Rabattgruppe: 11

Item no. 7601.80.24

Item no. 7601.80.25

Sampling device

701246 701247 Sampling Device 400064

Suitable for
  • ACO separators
  • Installation depth up to 3000 mm

Description
  • With integrated sampling
  • For taking a sample from the wastewater flow
  • Consisting of:
    • Sampling pump with suction coupling
    • Connection hose with suction coupling and threaded connector
  • Weight: 3 kg

Sampling device

701246 701247 Sampling Device 400064

Suitable for
  • ACO separators
  • Installation depth up to 5500 mm

Description
  • With integrated sampling
  • For taking a sample from the wastewater flow
  • Consisting of:
    • Sampling pump with suction coupling
    • Connection hose with suction coupling and threaded connector
  • Weight: 4.5 kg

Item no. 701246

Item no. 701247

Sealing sleeve DN/OD 110

Image 37024

Suitable for
  • Lipumax P
    • Basic type B
    • Type with direct suction D

Description
  • As seal between ventilation connection on the tank and ventilation pipe
  • Scope of supply: 2
  • Weight: 0.2 kg

Message system with GSM module

0150.46 129588

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets

Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg
  • Rabattgruppe: 12

Item no. 0150.34.32

Item no. 0150.80.14

Connection cable antenna GSM

Image 694390

Suitable for
  • GSM - Modul

Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Connection box

Image 36740

Suitable for
  • Grease separators
  • Starch separators ,
  • LipuLift-P-D/-DA/-DAP

Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg
  • Rabattgruppe: 11

Item no. 0150.83.86

Item no. 7601.80.20

In-wall frame

Image 36738

Suitable for
  • Connection box
    • 7601.80.20 ,
  • LipuLift-P-D/-DA/-DAP

Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg
  • Rabattgruppe: 11

Storz coupling for swinging gas lines

Image 228952

Suitable for
  • For installation in connection box art. no. 7601.80.22

Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg
  • Rabattgruppe: 11

Item no. 7601.80.21

Item no. 0155.32.09

Connection box

Image 36740

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P ,
  • LipuLift-P-D/-DA/-DAP

Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg
  • Rabattgruppe: 11

In-wall frame

Image 36738

Suitable for
  • Connection box
    • 7601.80.22 ,
  • LipuLift-P-D/-DA/-DAP

Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg
  • Rabattgruppe: 11

Item no. 7601.80.22

Item no. 7601.80.23

Extension

33001300 67613

Suitable for
  • Disposal shaft
    • Typ 450

Description
  • Made from plastic, material polyethylene
  • For fitting on upstream shaft for deep installations
  • Structure height: 100 – 650 mm
    • (can be reduced to 45 mm by cutting off at cutting marks)
  • Max. two extension can be used
  • Weight: 10.9 kg
  • Rabattgruppe: 11

Sampling device

701246 701247 Sampling Device 400064

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Light oil separator for underground installation
  • Stach seperator FapuMax-P for underground installation

Description
  • Consisting of:
    • Sampling pot with suction coupling
    • Connection hose with suction coupling and connection gland
    • Hose length: 3 m
  • Weight: 3.4 kg
  • Rabattgruppe: 11

Item no. 3301.31.00

Item no. 8800.00.10

Support ring

Image 36736

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation

Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 60 mm
  • Without seal
  • Displacement-proof
  • Height
    • 60 mm excluding mortar joints
    • 70 mm including mortar joints
  • Weight: 50 kg
  • Rabattgruppe: 11

Support ring

Image 36736

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation

Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 80 mm
  • Without seal
  • Displacement-proof
  • Height
    • 80 mm excluding mortar joints
    • 90 mm including mortar joints
  • Weight: 60 kg
  • Rabattgruppe: 11

Item no. 8700.20.00

Item no. 8700.20.10

Support ring

Image 36736

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation

Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 100 mm
  • Without seal
  • Displacement-proof
  • Height
    • 100 mm excluding mortar joints
    • 110 mm including mortar joints
  • Weight: 70 kg
  • Rabattgruppe: 11

Stepox

Description
  • Weight: 5.9 kg
  • Rabattgruppe: 11

Item no. 8700.20.20

Item no. 0150.80.62

Road cap

Image 661922

Suitable for
  • Grease separator for underground installation
    • LipuMax-P-D
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stach separators FapuMax-P-DA for underground installation
  • Oil separators Coalisator-P

Description
  • Shaft cover tested to DIN EN 124/DIN 1229
  • Load class: A 15
  • Frame and cover made of cast iron
  • Diameter: 300 mm
  • Clear width: 250 mm
  • Weight: 9.8 kg
  • Rabattgruppe: 1

Sealing sleeves DN 100 NBR

Image 37024

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P

Description
  • As insulation between air connection on tank and air line.
  • Weight: 0.1 kg
  • Rabattgruppe: 11

Item no. 5354.00.00

Item no. 0150.34.32

Washing hose 1 SN 10 – 150 DKO/DKO-L-90°

Image 37026

Suitable for
  • Grease separator for underground installation
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stach seperator FapuMax-P-DA for underground installation
  • LipuLift-P-DA/-DAP

Description
  • To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
  • Length: 10 m
  • Weight: 10 kg
  • Rabattgruppe: 11

Washing hose 1 SN 10 – 150 DKO/DKO-L-90°

Image 37026

Suitable for
  • Grease separator for underground installation
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stach seperator FapuMax-P-DA for underground installation
  • LipuLift-P-DA/-DAP

Description
  • To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
  • Length: 20 m
  • Weight: 10.3 kg
  • Rabattgruppe: 11

Item no. 0150.33.62

Item no. 0150.33.63

Washing hose 1 SN 10 – 150 DKO/DKO-L-90°

Image 37026

Suitable for
  • Grease separator for underground installation
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stach seperator FapuMax-P-DA for underground installation
  • LipuLift-P-DA/-DAP

Description
  • To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
  • Length: 30 m
  • Weight: 19 kg
  • Rabattgruppe: 11

Cable feedthrough ND 100

Image 208740

Suitable for
  • LipuMax-P-B / D and LipuLift-P/PF-B / D (In conjunction with an ACO grease layer measurement)
  • LipuMax-P/PH-B/D
  • Muli-Flex

Description
  • Material: V4A
  • For simple and fast sealing of up to 5 cables
  • Seal against pressurised water
  • Interchangeable insert 2x5mm, 2x7mm, 2x16mm, 1x12mm, 1x14mm
  • Weight: 1 kg
  • Rabattgruppe: 11

Item no. 0150.33.64

Item no. 0155.39.81

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation

Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg
  • Rabattgruppe: 11

Item no. 0150.45.23
