LipuMax-P-B | Underground Installation | ACO Grease Separators

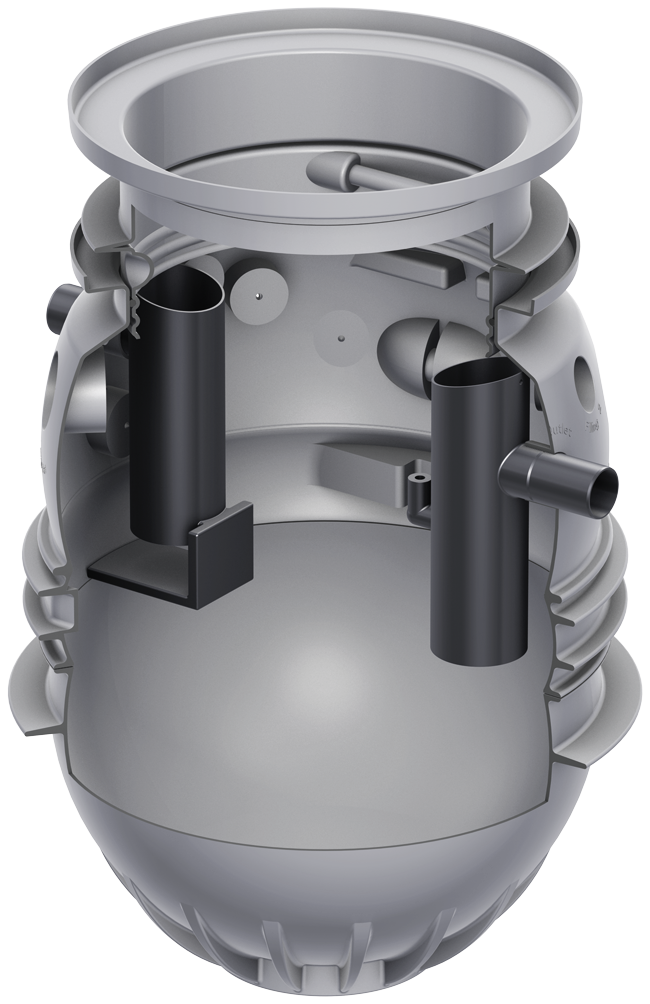

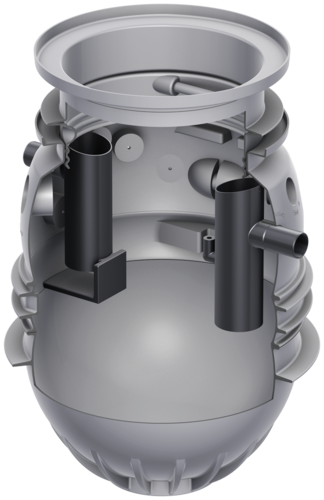

Screenshot 2024-09-12 114010

Product benefits

For gully top designs for load class D 400, shaft has buoyancy safety up to the upper side of the shaft manhole cover without need for on-site concrete castings.
Proven stability: 50 years

Grease separator plant as per DIN EN 1825 and DIN 4040-100
For underground installation
Emptying and cleaning via shaft manhole cover
Suitable top sections
- Top sections

Nominal size	Inlet / Outlet	Contents			Weight	Item number
		Sludge trap	Grease store	Overall	Weight
		[l]	[l]	[l]	[kg]
NS 2	DN 100	245	270	720	63	3202.80.00
NS 2	DN 100	460	270	930	79	3202.80.10
NS 4	DN 100	460	270	930	79	3204.80.00
NS 4	DN 100	980	270	1465	93	3204.80.10
NS 5.5	DN 150	570	230	1465	93	3205.80.00
NS 5.5	DN 150	1065	230	1960	107	3205.80.10
NS 7	DN 150	730	285	1675	108	3207.80.00
NS 8.5	DN 150	860	360	1900	115	3208.80.00
NS 10	DN 150	1005	415	2170	125	3210.80.00

3204.81.00 Neu 121156

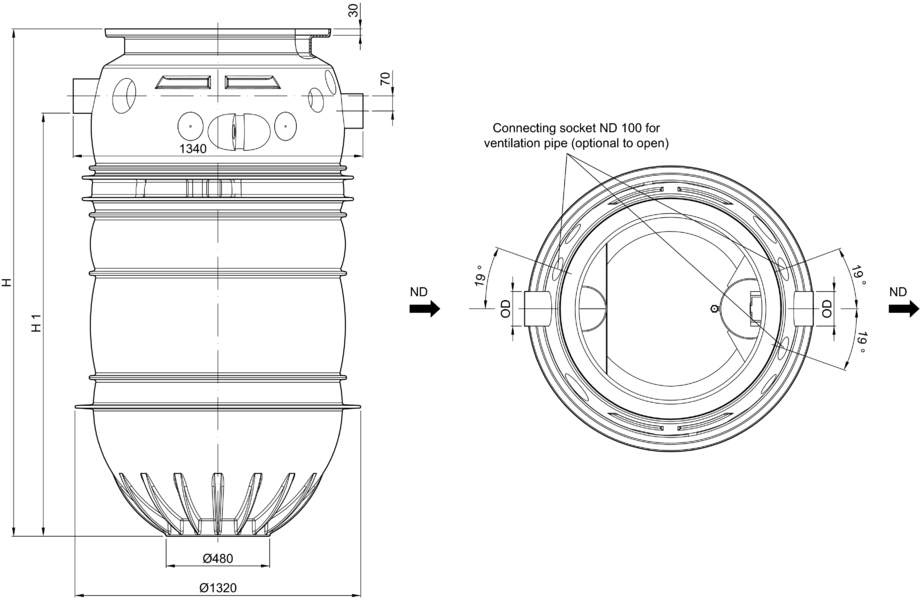

Nominal size	Sludge trap	Dimensions
	Sludge trap	D	H	H1
	[l]	[mm]	[mm]	[mm]
NS 2	245	110	1380	1020
NS 2	460	110	1595	1235
NS 4	460	110	1595	1235
NS 4	980	110	2130	1770
NS 5.5	570	160	2130	1745
NS 5.5	1065	160	2610	2225
NS 7	730	160	2345	1960
NS 8.5	860	160	2560	2175
NS 10	1005	160	2830	2445

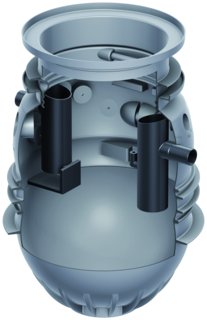

LipuMax-P-B

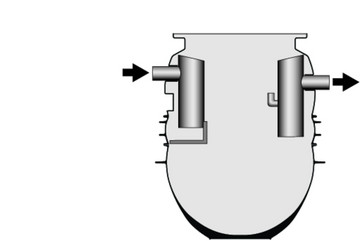

Features of base version:

Emptying and cleaning via maintenance opening
Odour build-up during emptying and cleaning

LipuMax-P-B

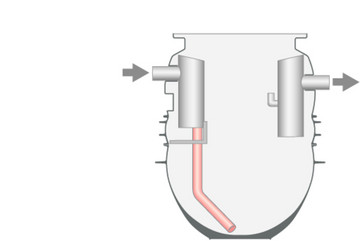

Features of upgrade level 1:

Connection for direct suction
Odour build-up only during cleaning

Lipumax- P-D

LipuMax-P-B

Features of upgrade level 2:

Connection for direct suction
High pressure cleaning operated manually
No odour build-up

LipuMax-P-DM

LipuMax-P-B

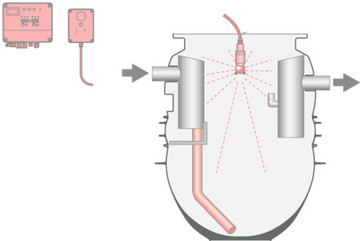

Features of upgrade level 3:

Connection for direct suction
Completely automatic programme
No odour build-up

LipuMax-P-DA

Top sections standard for separators

Sampling shafts body 800

Sampling shafts set 450

Disposal shafts

Suitable for

Grease separator LipuMax-P for underground installation
LipuLift-P

Description

For electronic measurement of layer of grease
Suitable for liquid and/or congealing grease
Measuring device with plug and used connecting cable, length: 3 m
With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
With visual display of fill level for advance warning and full warning
With heated probe rod to increase reliability of operation
Operating voltage: 230 V/50 Hz
Max consumption approx. 12W
Cable length: 10 m
Weight: 6.4 kg
Rabattgruppe: 11

Suitable for

Grease separator LipuMax-P for underground installation
LipuLift-P

Description

For electronic measurement of layer of grease
Suitable for liquid and/or congealing grease
Measuring device with plug and used connecting cable, length: 3 m
With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
With visual display of fill level for advance warning and full warning
With heated probe rod to increase reliability of operation
Operating voltage: 230 V/50 Hz
Max consumption approx. 12W
Cable length: 20 m
Weight: 7.8 kg
Rabattgruppe: 11

Download

Item no. 3300.11.70

Download

Item no. 3300.11.71

Suitable for

Grease separator LipuMax-P for underground installation
LipuLift-P

Description

For electronic measurement of layer of grease
Suitable for liquid and/or congealing grease
Measuring device with plug and used connecting cable, length: 3 m
With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
With visual display of fill level for advance warning and full warning
With heated probe rod to increase reliability of operation
Operating voltage: 230 V/50 Hz
Max consumption approx. 12W
Cable length: 30 m
Weight: 9.6 kg
Rabattgruppe: 11

Suitable for

Lipumax P

Description

For electronic measurement of the grease layer
Suitable for liquid and/or solidifying greases
Analyser with ready to plug-in connection cable, length: 3 m
With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
With visual display of the level for prewarning and full signal
With heated probe rod for increasing operating reliability
Operating voltage: 230 V/50 Hz
Max. consumption approx. 12 W
Cable length: 10 m
Weight: 2 kg

Download

Item no. 3300.11.72

Download

Item no. 3300.11.70

Suitable for

Lipumax P

Description

For electronic measurement of the grease layer
Suitable for liquid and/or solidifying greases
Analyser with ready to plug-in connection cable, length: 3 m
With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
With visual display of the level for prewarning and full signal
With heated probe rod for increasing operating reliability
Operating voltage: 230 V/50 Hz
Max. consumption approx. 12 W
Cable length: 20 m
Weight: 2.5 kg

Suitable for

Lipumax P

Description

For electronic measurement of the grease layer
Suitable for liquid and/or solidifying greases
Analyser with ready to plug-in connection cable, length: 3 m
With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
With visual display of the level for prewarning and full signal
With heated probe rod for increasing operating reliability
Operating voltage: 230 V/50 Hz
Max. consumption approx. 12 W
Cable length: 30 m
Weight: 3 kg

Download

Item no. 3300.11.71

Download

Item no. 3300.11.72

Suitable for

Grease separator
Starch separators ,
LipuLift-P-D/-DA/-DAP

Description

For disposal connection, pendulum gas line (if necessary) and remote control
From stainless steel, material grade 304
"Surface mounted” version
Glass beaded front
Lockable door, left limit stop
Dimensions W x H x D: 300 x 725 x 160 mm
Weight: 10 kg
Rabattgruppe: 11

Suitable for

Connection box
- 7601.80.24 ,
LipuLift-P-D/-DA/-DAP

Description

From stainless steel, material grade 304
"In-wall” version
Glass beaded front
Dimension W x H x D:
- 405 x 830 x 30 mm
Weight: 2.1 kg
Rabattgruppe: 11

Download

Item no. 7601.80.24

Download

Item no. 7601.80.25

701246 701247 Sampling Device 400064

Suitable for

ACO separators
Installation depth up to 3000 mm

Description

With integrated sampling
For taking a sample from the wastewater flow
Consisting of:
- Sampling pump with suction coupling
- Connection hose with suction coupling and threaded connector
Weight: 3 kg

701246 701247 Sampling Device 400064

Suitable for

ACO separators
Installation depth up to 5500 mm

Description

With integrated sampling
For taking a sample from the wastewater flow
Consisting of:
- Sampling pump with suction coupling
- Connection hose with suction coupling and threaded connector
Weight: 4.5 kg

Download

Item no. 701246

Download

Item no. 701247

Suitable for

Lipumax P
- Basic type B
- Type with direct suction D

Description

As seal between ventilation connection on the tank and ventilation pipe
Scope of supply: 2
Weight: 0.2 kg

0150.46 129588

Suitable for

All grease separators
Grease layer thickness measuring device
Pre-tank plants
Technical processing systems
Quatrix-K backflow preventer type 3F
Sinkamat-K (underfloor) duo
Muli lifting units
Pumping stations
Installation sets

Description

Parameter via app (Android & iOs)
Mains-independent alarm via 12V lead-gel battery
Optical and acoustic alarm message
Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
1 alarm output 12 V
Alarm forwarding via SMS to mobile phones
For mounting outside the hazardous area
Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
Protective doctor: IP54
Operating voltage: 230 V/AC 50/60 Hz
Weight: 2 kg
Rabattgruppe: 12

Download

Item no. 0150.34.32

Download

Item no. 0150.80.14

Suitable for

GSM - Modul

Description

Length incl. connections: approx. 15 m
Cable type: RG58
Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
Only one extension cable may be used per GSM module
Usable in temperature range: -20°C to 85°C

Suitable for

Grease separators
Starch separators ,
LipuLift-P-D/-DA/-DAP

Description

For evacuation connection and remote control
Made from stainless steel, material grade 304
Fixing: "On wall"
Dimensions (width x height x depth): 500 x 500 x 160 mm
Weight: 11.6 kg
Rabattgruppe: 11

Download

Item no. 0150.83.86

Download

Item no. 7601.80.20

Suitable for

Connection box
- 7601.80.20 ,
LipuLift-P-D/-DA/-DAP

Description

Dimensions (width x height x depth): 565 x 565 x 15 mm
Weight: 1.2 kg
Rabattgruppe: 11

Suitable for

For installation in connection box art. no. 7601.80.22

Description

Storz coupling 75B
For connection of the disposal vehicle pendulum gas line
For pipe connection Rp 2 ½" (female thread)
Weight: 1.8 kg
Rabattgruppe: 11

Download

Item no. 7601.80.21

Download

Item no. 0155.32.09

Suitable for

Grease separators
- LipuMax-P-D/DM/DA
- LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
- LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
Stach seperators FapuMax-P-DA
Oil separators Coalisator-P ,
LipuLift-P-D/-DA/-DAP

Description

For evacuation connection DN 80
Made from stainless steel, material grade 304
"On wall" version
Door stop
- Choice of left or right
- Lockable door
Dimensions (width x height x depth): 370 x 330 x 250 mm
Weight: 10.4 kg
Rabattgruppe: 11

Suitable for

Connection box
- 7601.80.22 ,
LipuLift-P-D/-DA/-DAP

Description

Stainless steel, material grade 304
Dimensions (width x height x depth): 421 x 381 x 25 mm
Weight: 1 kg
Rabattgruppe: 11

Download

Item no. 7601.80.22

Download

Item no. 7601.80.23

33001300 67613

Suitable for

Disposal shaft
- Typ 450

Description

Made from plastic, material polyethylene
For fitting on upstream shaft for deep installations
Structure height: 100 – 650 mm
- (can be reduced to 45 mm by cutting off at cutting marks)
Max. two extension can be used
Weight: 10.9 kg
Rabattgruppe: 11

701246 701247 Sampling Device 400064

Suitable for

Grease separator LipuMax-P for underground installation
Light oil separator for underground installation
Stach seperator FapuMax-P for underground installation

Description

Consisting of:
- Sampling pot with suction coupling
- Connection hose with suction coupling and connection gland
- Hose length: 3 m
Weight: 3.4 kg
Rabattgruppe: 11

Download

Item no. 3301.31.00

Download

Item no. 8800.00.10

Suitable for

Grease separator LipuMax-P for underground installation
Lipulift-P Serie
Starch separator FapuMax-P for underground installation

Description

Made from concrete
Diameter: 625 mm
Thickness: 60 mm
Without seal
Displacement-proof
Height
- 60 mm excluding mortar joints
- 70 mm including mortar joints
Weight: 50 kg
Rabattgruppe: 11

Suitable for

Grease separator LipuMax-P for underground installation
Lipulift-P Serie
Starch separator FapuMax-P for underground installation

Description

Made from concrete
Diameter: 625 mm
Thickness: 80 mm
Without seal
Displacement-proof
Height
- 80 mm excluding mortar joints
- 90 mm including mortar joints
Weight: 60 kg
Rabattgruppe: 11

Download

Item no. 8700.20.00

Download

Item no. 8700.20.10

Suitable for

Grease separator LipuMax-P for underground installation
Lipulift-P Serie
Starch separator FapuMax-P for underground installation

Description

Made from concrete
Diameter: 625 mm
Thickness: 100 mm
Without seal
Displacement-proof
Height
- 100 mm excluding mortar joints
- 110 mm including mortar joints
Weight: 70 kg
Rabattgruppe: 11

Description

Weight: 5.9 kg
Rabattgruppe: 11

Download

Item no. 8700.20.20

Download

Item no. 0150.80.62

Suitable for

Grease separator for underground installation
- LipuMax-P-D
- LipuMax-P-DM
- LipuMax-P-DA
Stach separators FapuMax-P-DA for underground installation
Oil separators Coalisator-P

Description

Shaft cover tested to DIN EN 124/DIN 1229
Load class: A 15
Frame and cover made of cast iron
Diameter: 300 mm
Clear width: 250 mm
Weight: 9.8 kg
Rabattgruppe: 1

Suitable for

Grease separator LipuMax-P for underground installation
LipuLift-P

Description

As insulation between air connection on tank and air line.
Weight: 0.1 kg
Rabattgruppe: 11

Download

Item no. 5354.00.00

Download

Item no. 0150.34.32

Suitable for

Grease separator for underground installation
- LipuMax-P-DM
- LipuMax-P-DA
Stach seperator FapuMax-P-DA for underground installation
LipuLift-P-DA/-DAP

Description

To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
Length: 10 m
Weight: 10 kg
Rabattgruppe: 11

Suitable for

Grease separator for underground installation
- LipuMax-P-DM
- LipuMax-P-DA
Stach seperator FapuMax-P-DA for underground installation
LipuLift-P-DA/-DAP

Description

To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
Length: 20 m
Weight: 10.3 kg
Rabattgruppe: 11

Download

Item no. 0150.33.62

Download

Item no. 0150.33.63

Suitable for

Grease separator for underground installation
- LipuMax-P-DM
- LipuMax-P-DA
Stach seperator FapuMax-P-DA for underground installation
LipuLift-P-DA/-DAP

Description

To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
Length: 30 m
Weight: 19 kg
Rabattgruppe: 11

Suitable for

LipuMax-P-B / D and LipuLift-P/PF-B / D (In conjunction with an ACO grease layer measurement)
LipuMax-P/PH-B/D
Muli-Flex

Description

Material: V4A
For simple and fast sealing of up to 5 cables
Seal against pressurised water
Interchangeable insert 2x5mm, 2x7mm, 2x16mm, 1x12mm, 1x14mm
Weight: 1 kg
Rabattgruppe: 11

Download

Item no. 0150.33.64

Download

Item no. 0155.39.81

Suitable for

Grease separator
- For underground installation
- For free-standing installation

Description

Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
Format: A4 with double filing rings
Size: 60 pages
Laid out to cover 5 years
Weight: 0.3 kg
Rabattgruppe: 11

Download

Item no. 0150.45.23
