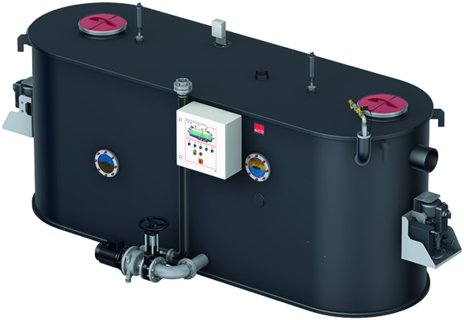

LipuJet-P-OAP
- Grease separator according to EN 1825 for installation inside frost-free rooms
- Manufactured of polyethylene in oval shape
- Two covers odour-proof ∅ 450 mm
- Inlet and outlet ∅ 200 mm (NS 15 – 25) or ∅ 250 mm (NS 30)
- Automatically operated disposal pump (3,7 kW) with shut-off valve, disposal connection ∅ 75 mm with Storz-B coupling R 2½"
- Two automatically operated high pressure pumps (3,9 kW each) and connection high pressure spray heads (150 bar) for combined mixing of the content and cleaning of the tank
- Automatically operated filling device R ¾” via solenoid valve
- Two inspection windows with wiper
- Operating side left or right
Operation side: Right-hand
| Nominal capacity | Contents | Item number | ||
|---|---|---|---|---|
| Sludge trap | Grease store | Overall | ||
| [l] | [l] | [l] | ||
| NS 15 | 1580 | 630 | 2850 | 3815.85.42 |
| NS 20 | 2070 | 850 | 3760 | 3820.85.42 |
| NS 25 | 2550 | 1070 | 4660 | 3825.85.42 |
| NS 30 | 3020 | 1290 | 5550 | 3830.85.42 |
- With two inspection windows for sludge and grease control
- With two high pressure spray heads for perfect inner body cleaning
- Disposal pump for maximum lift heights up to 18 meters with 10 m³/h disposal performance
- Control unit with presets and flexible adjustments (cleaning and filling times)

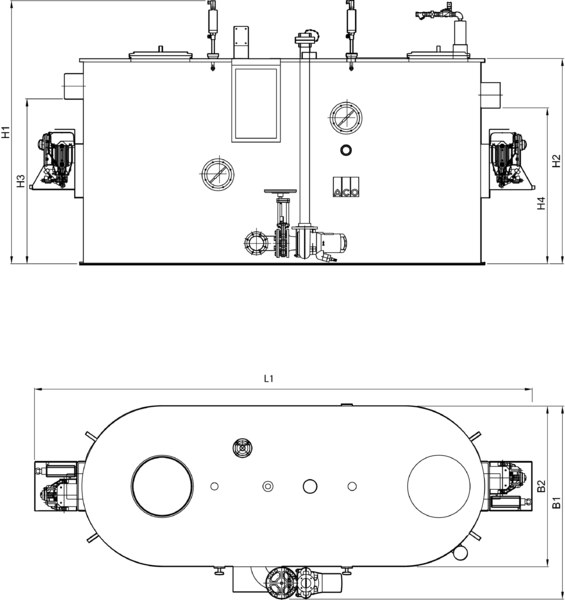

| Nominal capacity | Dimensions | ||||||
|---|---|---|---|---|---|---|---|
| L1 | H1 | H2 | H3 | H4 | W1 | W2 | |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| NS 15 | 3210 | 2090 | 1640 | 1300 | 1230 | 1530 | 1260 |
| NS 20 | 3910 | 2090 | 1640 | 1300 | 1230 | 1530 | 1260 |
| NS 25 | 4610 | 2190 | 1740 | 1300 | 1230 | 1530 | 1260 |
| NS 30 | 5310 | 2190 | 1740 | 1300 | 1230 | 1530 | 1260 |
