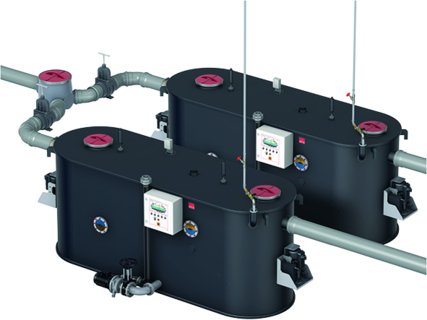

LipuJet-P-OAP - Parallel

  • Grease separator plant in parallel installation according to EN 1825 for free standing installation in frost-proof rooms
  • Consisting of two separators
    • Grease separator according to EN 1825 for installation inside frost-free rooms
    • Manufactured of polyethylene in oval shape
    • Two covers odour-proof ∅ 450 mm
    • Inlet and outlet ∅ 200 mm (NS 15 – 25) or ∅ 250 mm (NS 30)
    • Automatically operated disposal pump (3,7 kW) with shut-off valve, disposal connection ∅ 75 mm with Storz-B coupling R 2½"
    • Two automatically operated high pressure pumps (3,9 kW each) and connection high pressure spray heads (150 bar) for combined mixing of the content and cleaning of the tank
    • Automatically operated filling device R ¾” via solenoid valve
    • Electric connection 400 V/50 Hz (60 Hz)/16 A/11,5 kW
    • Two inspection windows with wiper
    • Operating side left or right
  • Distribution unit with inlet ∅ 250 mm with piping and shut-off valves between distribution unit and grease separators
Nominal capacityContentsItem
number
Sludge trapGrease storeOverall
[l][l][l]
NS 404140170075203840.85.40
NS 505100214093203850.85.40
NS 6060402580111003860.85.40
  • With two inspection windows for sludge and grease control
  • With two high pressure spray heads for perfect inner body cleaning
  • Disposal pump for maximum lift heights up to 18 meters with 10 m³/h disposal performance
  • Control unit with presets and flexible adjustments (cleaning and filling times)

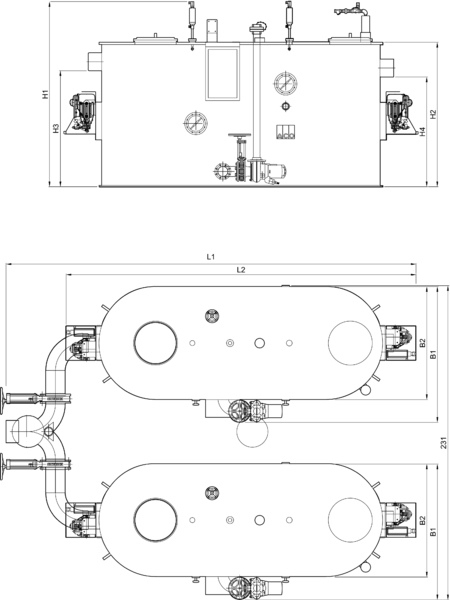

Nominal capacity
NS 40
NS 50
NS 60
