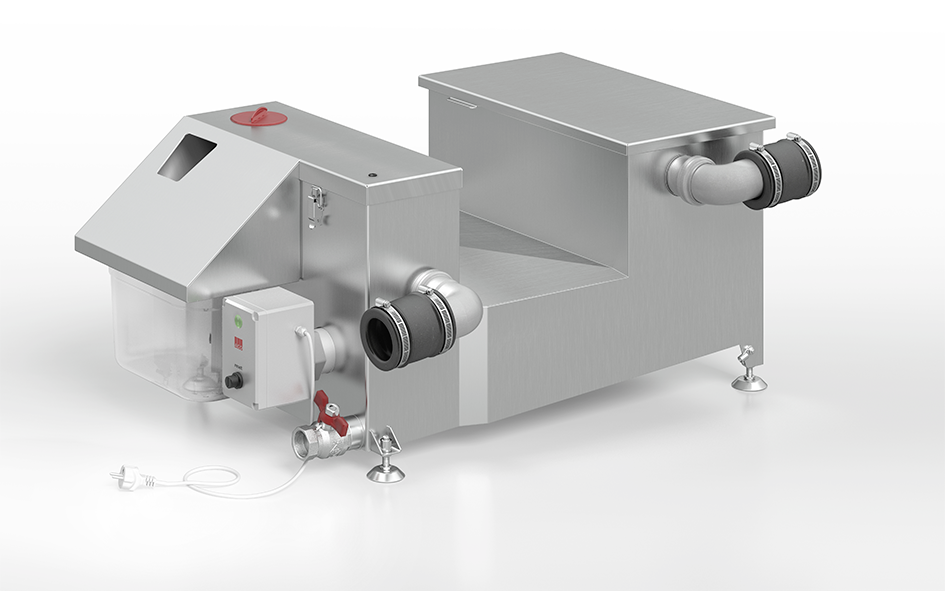

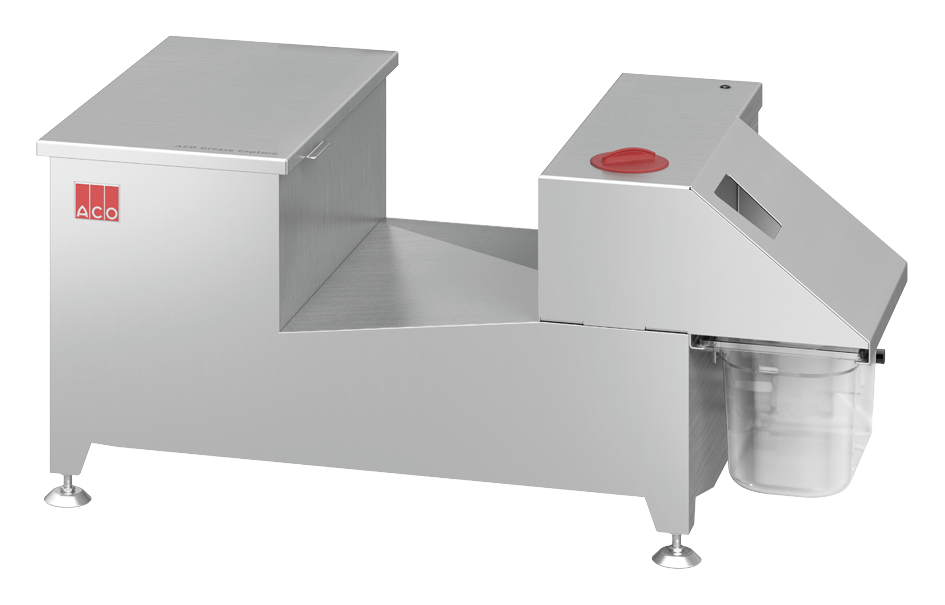

ACO grease capture
Product benefits
- Automatic fats, oils and grease removal into waste container
- Simple to install
- Protect inner building pipes from fats, oils and grease blockages
- Very easy to maintain
- Hygienic - made from Stainless Steel
- Overflow protection
- Separation process improvement by addition of food debris removal basket
Model name | Flow rate | Contents | Weight | Voltage | Plug type | Power supply | Inlet & outlet connection type | Item number | ||
Silt basket | Grease collection box | Empty | Full | |||||||
[l/s] | [l] | [l] | [kg] | [kg] | ||||||
GC50 | 0.5 | 4.8 | 2.3 | 25 | 58 | 230V/50Hz | CEE7/7 | 600W, 2.6A | Flexible coupling 2" (OD 48-60mm) | 418502.05.23.C2 |
GC100 | 1.0 | 5.2 | 3.8 | 31 | 78 | 230V/50Hz | CEE7/7 | 600W, 2.6A | Flexible coupling 2" (OD 48-60mm) | 418502.10.23.C2 |
GC150 | 1.5 | 8.3 | 3.8 | 39 | 114 | 230V/50Hz | CEE7/7 | 1000W, 4.3A | Flexible coupling (in D50, out D75) coupling 2" and 3" | 418502.15.23.C2 |
GC220 | 2.2 | 8.8 | 3.8 | 47 | 150 | 230V/50Hz | CEE7/7 | 1000W, 4.3A | Flexible coupling (in D50, out D75) coupling 2" and 3" | 418502.22.23.C2 |

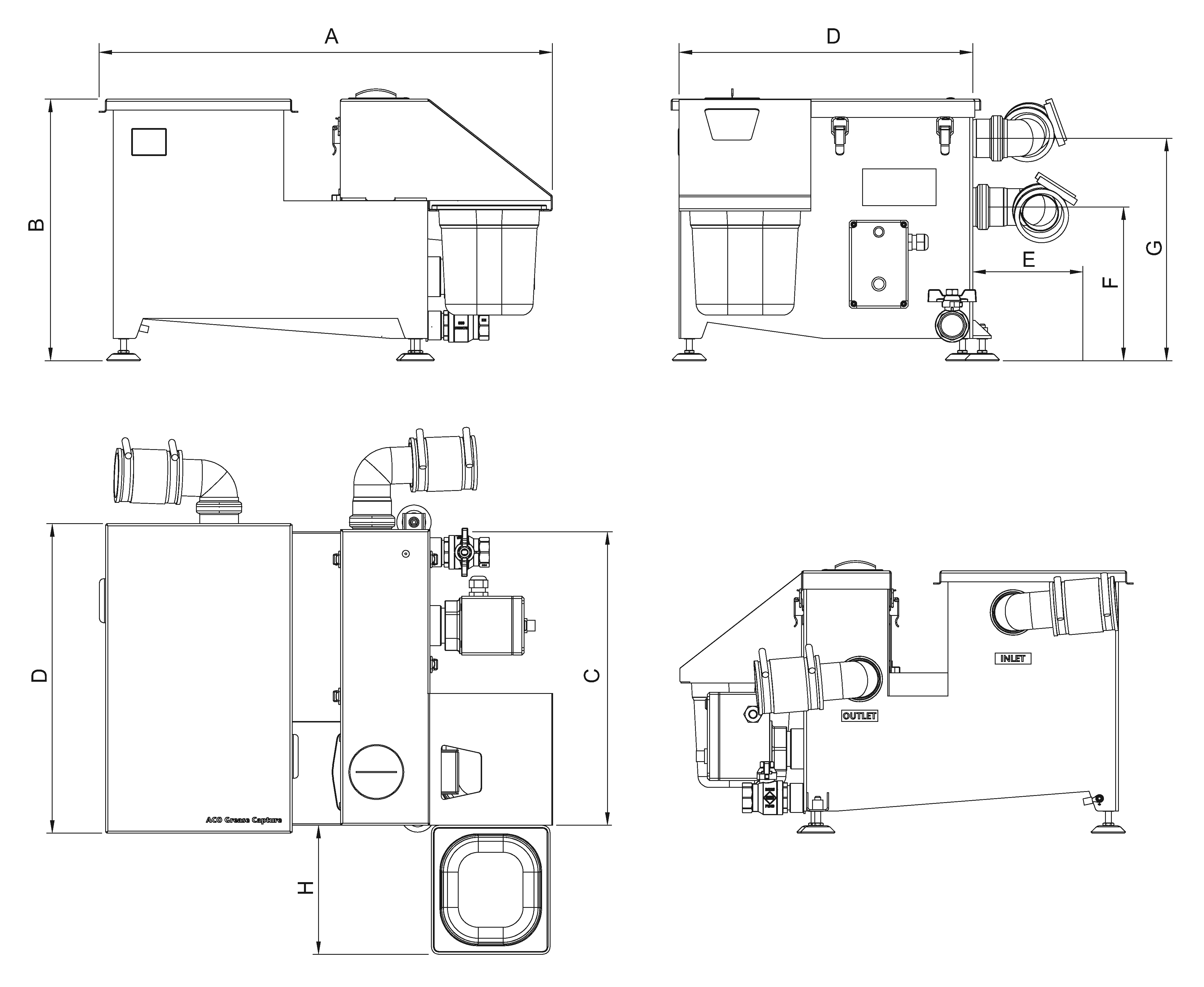

Item number | Description | Dimensions | Shipping dimensions | |||||||||
A | B | C | D | E | F | G | H | l | w | h | ||
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
418502.05.23.C2 | GC50 | 618 | 357 | 400 | 422 | 150 | 209 | 303 | 176 | 350 | 510 | 680 |
418502.10.23.C2 | GC100 | 820 | 357 | 430 | 452 | 120 | 209 | 303 | 263 | 350 | 510 | 880 |
418502.15.23.C2 | GC150 | 1100 | 370 | 440 | 462 | 120 | 226 | 317 | 263 | 370 | 520 | 1160 |
418502.22.23.C2 | GC220 | 1450 | 370 | 460 | 482 | 120 | 229 | 317 | 263 | 370 | 540 | 1510 |
Model name | Flow rate | Contents | Weight | Voltage | Plug type | Power supply | Inlet & outlet connection type | Item number | ||
Silt basket | Grease collection box | Empty | Full | |||||||
[l/s] | [l] | [l] | [kg] | [kg] | ||||||
GC50 | 0.5 | 4.8 | 2.3 | 25 | 58 | 230V/50Hz | CEE7/7 | 600W, 2.6A | Flexible coupling 2" (OD 48-60mm) | 418502.05.23.C2 |
GC100 | 1.0 | 5.2 | 3.8 | 31 | 78 | 230V/50Hz | CEE7/7 | 600W, 2.6A | Flexible coupling 2" (OD 48-60mm) | 418502.10.23.C2 |
GC150 | 1.5 | 8.3 | 3.8 | 39 | 114 | 230V/50Hz | CEE7/7 | 1000W, 4.3A | Flexible coupling (in D50, out D75) coupling 2" and 3" | 418502.15.23.C2 |
GC220 | 2.2 | 8.8 | 3.8 | 47 | 150 | 230V/50Hz | CEE7/7 | 1000W, 4.3A | Flexible coupling (in D50, out D75) coupling 2" and 3" | 418502.22.23.C2 |
Item number | Description | Dimensions | Shipping dimensions | |||||||||
A | B | C | D | E | F | G | H | l | w | h | ||
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
418502.05.23.C2 | GC50 | 618 | 357 | 400 | 422 | 150 | 209 | 303 | 176 | 350 | 510 | 680 |
418502.10.23.C2 | GC100 | 820 | 357 | 430 | 452 | 120 | 209 | 303 | 263 | 350 | 510 | 880 |
418502.15.23.C2 | GC150 | 1100 | 370 | 440 | 462 | 120 | 226 | 317 | 263 | 370 | 520 | 1160 |
418502.22.23.C2 | GC220 | 1450 | 370 | 460 | 482 | 120 | 229 | 317 | 263 | 370 | 540 | 1510 |
