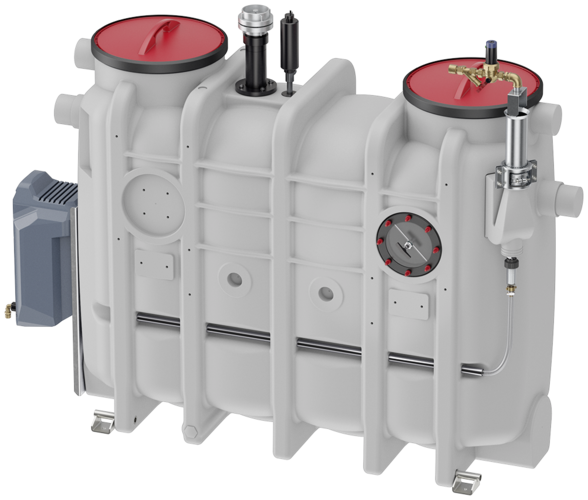

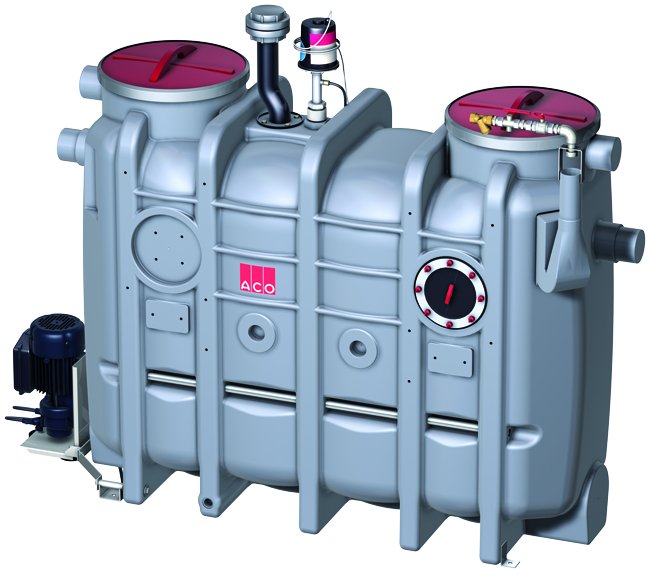

Grease Separator LipuJet-P-OM extension stage 2

Suitable for

• LipuJet-P
  • Oval NS 1 – 10
  • Round NS 2 – 22,5
• LipuJet-S
  • Oval NS 1 – 10
  • Round NS 2 – 20
• LipuSmart-P
  • Oval NS 1 – 10

Description

• For electronic measurement of layer of grease
• Suitable for liquid and/or congealing grease
• Measuring device with plug and used connecting cable, length: 3 m
• With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
• With visual display of fill level
• With heated probe rod to increase reliability of operation
• Operating voltage: 230VAC/5 VA
• Max consumption approx. 12W
• Weight: 2.8 kg

Suitable for

• Grease separators, indoors
• Grease separators, outdoors
• Lifting stations
• Pumping stations

Description

• ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
• Material: acid-resistant stainless steel

Consists:

• ACO Ozone - ozone generator
  • Size (L x W x H): 270 x 100 x 85 mm
  • Nominal voltage 230 V / 50 Hz
  • Degree of protection IP20
• ACO Ozone pump - feed pump
  • Size (L x W x H): 160 x 90 x 90 mm
  • Integrated filter
  • Nominal voltage 230 V / 50 Hz
  • Degree of protection IP54
• ACO Ozone bracket - wall bracket
  • Size (L x W x H): 295 x 110 x 90 mm
• Hoses

Suitable for

• All grease separators
• Grease layer thickness measuring device
• Pre-tank plants
• Technical processing systems
• Quatrix-K backflow preventer type 3F
• Sinkamat-K (underfloor) duo
• Muli lifting units
• Pumping stations
• Installation sets

Description

• Parameter via app (Android & iOs)
• Mains-independent alarm via 12V lead-gel battery
• Optical and acoustic alarm message
• Freely configurable inputs
  • 6 digital inputs with LED status display
  • 1 analogue
• 1 alarm output 12 V
• Alarm forwarding via SMS to mobile phones
• For mounting outside the hazardous area
• Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
• Protective doctor: IP54
• Operating voltage: 230 V/AC 50/60 Hz
• Weight: 2 kg

Suitable for

• GSM - Modul

Description

• Length incl. connections: approx. 15 m
• Cable type: RG58
• Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
• Only one extension cable may be used per GSM module
• Usable in temperature range: -20°C to 85°C

Suitable for

• Grease separators

Description

• To liquefy grease layer
• Incl. control
• Electrical connector
  • 400 V/50 Hz/6.0 kW
• Weight: 15 kg

Suitable for

• Grease separators
• Starch separators
• LipuLift-P-D/-DA/-DAP

Description

• For evacuation connection and remote control
• Made from stainless steel, material grade 304
• Fixing: "On wall"
• Dimensions (width x height x depth): 500 x 500 x 160 mm
• Weight: 11.6 kg

Suitable for

• Connection box
  • 7601.80.20
• LipuLift-P-D/-DA/-DAP

Description

• Dimensions (width x height x depth): 565 x 565 x 15 mm
• Weight: 1.2 kg

Suitable for

• For installation in connection box art. no. 7601.80.22

Description

• Storz coupling 75B
• For connection of the disposal vehicle pendulum gas line
• For pipe connection Rp 2 ½" (female thread)
• Weight: 1.8 kg

Suitable for

• Grease separators
  • LipuMax-P-D/DM/DA
  • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
  • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
• Stach seperators FapuMax-P-DA
• Oil separators Coalisator-P
• LipuLift-P-D/-DA/-DAP

Description

• For evacuation connection DN 80
• Made from stainless steel, material grade 304
• "On wall" version
• Door stop
  • Choice of left or right
  • Lockable door
• Dimensions (width x height x depth): 370 x 330 x 250 mm
• Weight: 10.4 kg

Suitable for

• Connection box
  • 7601.80.22
• LipuLift-P-D/-DA/-DAP

Description

• Stainless steel, material grade 304
• Dimensions (width x height x depth): 421 x 381 x 25 mm
• Weight: 1 kg

Suitable for

• Grease separator
• Starch separators
• LipuLift-P-D/-DA/-DAP

Description

• For disposal connection, pendulum gas line (if necessary) and remote control
• From stainless steel, material grade 304
• "Surface mounted” version
• Glass beaded front
• Lockable door, left limit stop
• Dimensions W x H x D: 300 x 725 x 160 mm
• Weight: 10 kg

Suitable for

• Connection box
  • 7601.80.24
• LipuLift-P-D/-DA/-DAP

Description

• From stainless steel, material grade 304
• "In-wall” version
• Glass beaded front
• Dimension W x H x D:
  • 405 x 830 x 30 mm
• Weight: 2.1 kg

Suitable for

• Grease separator
  • For underground installation
  • For free-standing installation

Description

• Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
• Format: A4 with double filing rings
• Size: 60 pages
• Laid out to cover 5 years
• Weight: 0.3 kg

Suitable for

• Grease separator LipuJet-P/LipuSmart-P
  • NS 1 – 4
• Starch separator FapuJet-P-OAP
  • NS 0.5 – 1

Description

• For installation of horizontal pipes DN 100 to grease separator
• Round shape with
  • Coupling socket seal (material SBR) on inlet and spigot on outflow
  • Odour-proof maintenance opening DN 450
• Weight: 10.2 kg

Suitable for

• Grease separator LipuJet-P/LipuSmart-P
  • NS 5.5 – 10
• Starch separator FapuJet-P-OAP
  • NS 2

Description

• For installation of horizontal pipes DN 150 to grease separator
• Round shape with
  • Coupling socket seal (material SBR) on inlet and spigot on outflow
  • Odour-proof maintenance opening DN 450
• Weight: 10.1 kg

Suitable for

• Grease separator LipuJet-P/LipuSmart-P
  • NS 1 – 4
• Starch separator FapuJet-P-OAP
  • NS 0.5 – 1

Description

• For installation in vertical pipes DN 100 going to grease separator
• Round shape with
  • Coupling socket seal (material SBR) on inlet and spigot on outflow
  • Odour-proof maintenance opening DN 450
• Weight: 10.2 kg

Suitable for

• Grease separator LipuJet-P/LipuSmart-P
  • NS 5.5 – 10
• Starch separator FapuJet-P-OAP
  • NS 2

Description

• For installation in vertical pipes DN 150 going to grease separator
• Round shape with
  • Coupling socket seal (material SBR) on inlet and spigot on outflow
  • Odour-proof maintenance opening DN 450
• Weight: 10.1 kg

Suitable for

• Grease separator LipuJet-P/LipuSmart-P
  • NS 1 – 4
• Starch separator FapuJet-P-OAP
  • NS 0.5 – 1

Description

• For installation in vertical pipes DN 100 going to grease separator
• Round shape with
  • Coupling socket seal (material SBR) on inlet and spigot on outflow
  • Basket made from stainless steel, material grade 316 to retain coarse substances
  • Odour-proof maintenance opening DN 450
• Weight: 9.7 kg

Suitable for

• Grease separator LipuJet-P/LipuSmart-P
  • NS 5.5 – 10
• Starch separator FapuJet-P-OAP
  • NS 2

Description

• For installation in vertical pipes DN 150 going to grease separator
• Round shape with
  • Coupling socket seal (material SBR) on inlet and spigot on outflow
  • Basket made from stainless steel, material grade 316 to retain coarse substances
  • Odour-proof maintenance opening DN 450
• Weight: 12.6 kg

Suitable for

• Grease separators for free-standing installation
• Starch separator for free-standing installation

Description

• Made of cast iron
• Penstock plate, spindle made from stainless steel, material grade 304
• DN 100
• Length (L): 50 mm
• Spindle travel (H1 – H2): 365 – 465 mm
• Manual wheel diameter: 200 mm
• Weight: 15 kg

Suitable for

• Grease separators for free-standing installation
• Starch separator for free-standing installation

Description

• Made of cast iron
• Penstock plate, spindle made from stainless steel, material grade 304
• DN 150
• Length (L): 60 mm
• Spindle travel (H1 – H2): 478 – 639 mm
• Manual wheel diameter: 200 mm
• Weight: 29.4 kg

Suitable for

• Wastewater lifting plant
• Polyethylene grease separator
• Polyethylene starch separator
• Upstream tank plant
  • Typ 2 and 4
• LipuMobil-P – Type 0.5

Description

• Made of PVC
• 110 mm push socket on both sides with rim sealing ring
• Overall dimensions: 176 x 330 mm (L x H)
• Weight: 3.1 kg

Suitable for

• Wastewater lifting plant
• Polyethylene grease separator
• Polyethylene starch separator
• Upstream tank plant
  • Type 7 – Type 10

Description

• Made of PVC
• 160 mm push socket on both sides with rim sealing ring
• Overall dimensions: 226 x 510 mm (L x H)
• Weight: 7 kg
