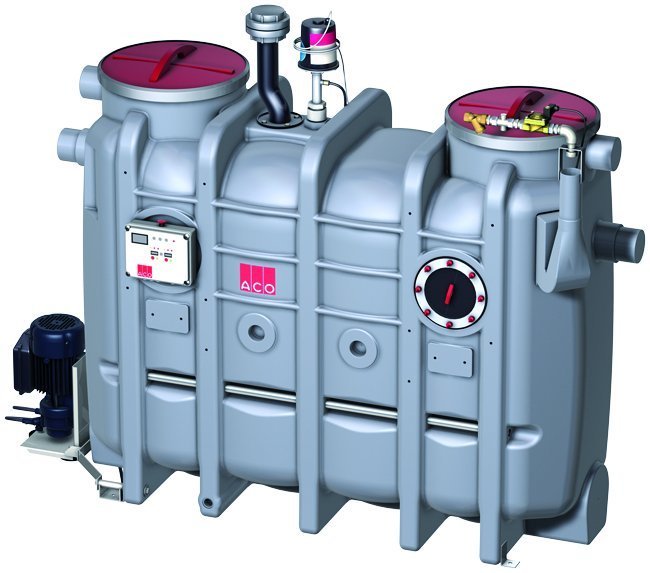

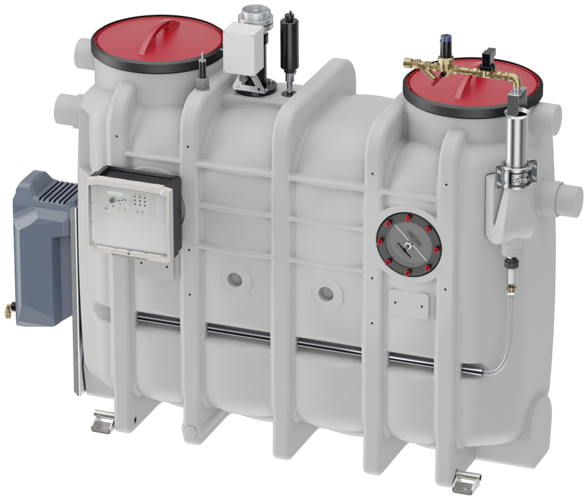

LipuJet-P-OA Extension Stage 3

LipuJet-P-OA extension stage 3

Product benefits

  • Proven stability: 25 years
  • Odour-free emptying, cleaning and filling
  • Can be equipped with an disposal pump
  • Pre- and post-cleaning times can be set individually
  • Hydromechanical high-pressure cleaning – only a cold-water connection required
  • Can be equipped with an disposal pump
  • Minimises disposal and maintenance costs thanks to economic step increases in nominal size
  • Small delivery dimensions
  • Low weight

Product information

  • Grease separator plant as per DIN EN 1825 and DIN 4040-100
  • For indoors installation – frost free
  • With integrated sludge trap
  • Operating side: right/left
  • Draining connection, fire hose quick coupling B 2½"
  • Suction and emptying sump with drain plug socket 1"
  • Inspection window with wiper
  • Automatic high-pressure internal cleaning with pump
    • Nominal pressure: 175 bar
    • Capacity: 11,6 l/min
    • Chopping, mixing, rinsing in one process
  • Standard control with group fault reporting
  • Odour-proof maintenance opening, diameter: 450 mm
  • Filling device with magnetic valve (connection ¾") for automatic refilling
  • Electrical connector: 400V/50 Hz/16A/4,2 kW

Operation side: Right-hand

Nominal sizeNominal widthContentsWeightItem number
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 1DN 1001061003201004203551.74.42
NS 2DN 1002101004401055453552.74.42
NS 3DN 1003001506301207503553.74.42
NS 4DN 1004002008301359653554.74.42
NS 5.5DN 150725360143021016403555.74.42
NS 7DN 150800400160022618263557.74.42
NS 8.5DN 150940475190024721473558.74.42
NS 10DN 1501000520200025922593560.74.42

Operation side: left

Nominal sizeNominal widthContentsWeightItem number
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 1DN 1001061003201004203551.74.32
NS 2DN 1002101004401055453552.74.32
NS 3DN 1003001506301207503553.74.32
NS 4DN 1004002008301359653554.74.32
NS 5.5DN 150725360143021016403555.74.32
NS 7DN 150800400160022618263557.74.32
NS 8.5DN 150940475190024721473558.74.32
NS 10DN 1501000520200025922593560.74.32
Z35547442 Print 121148

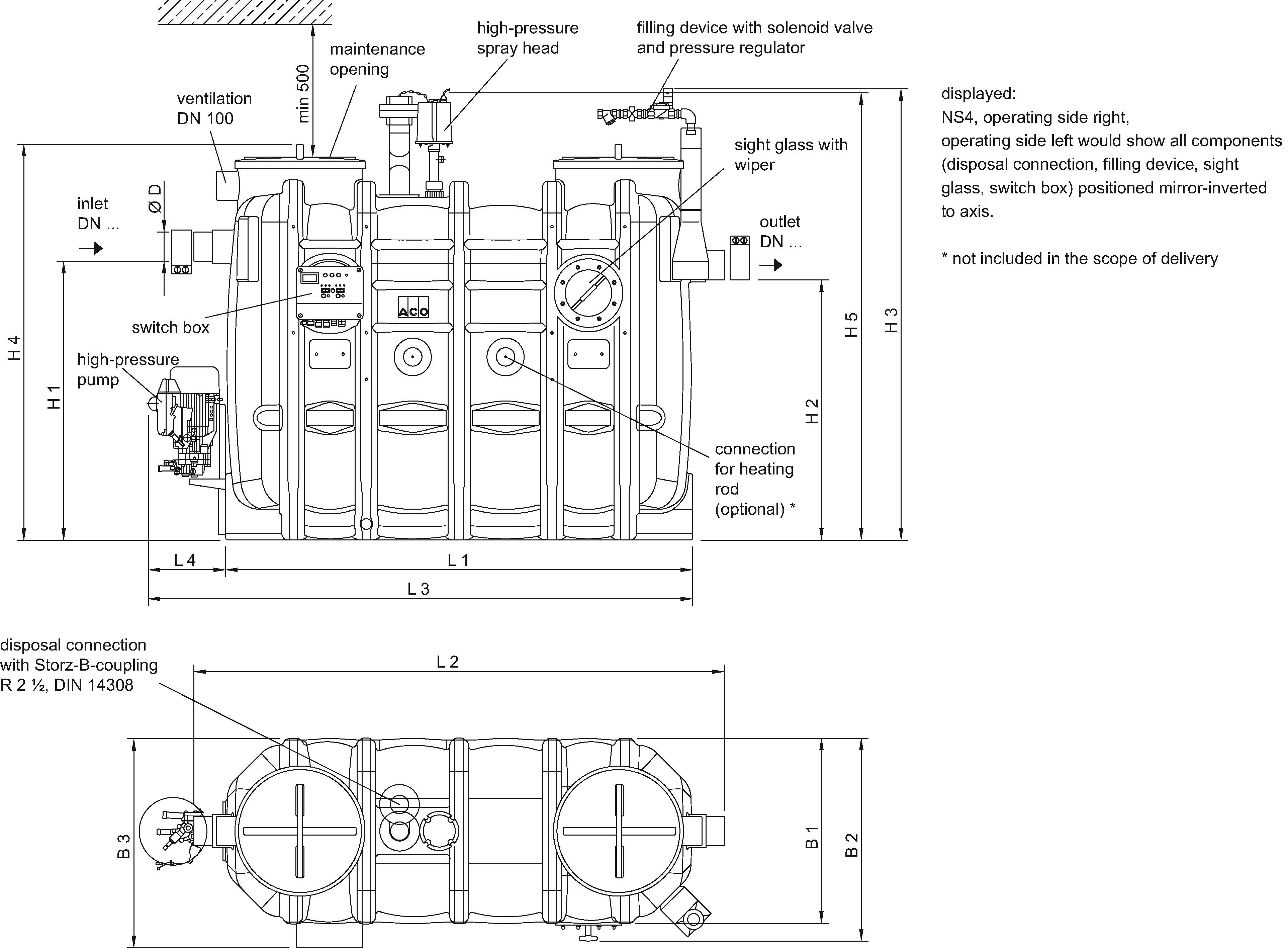

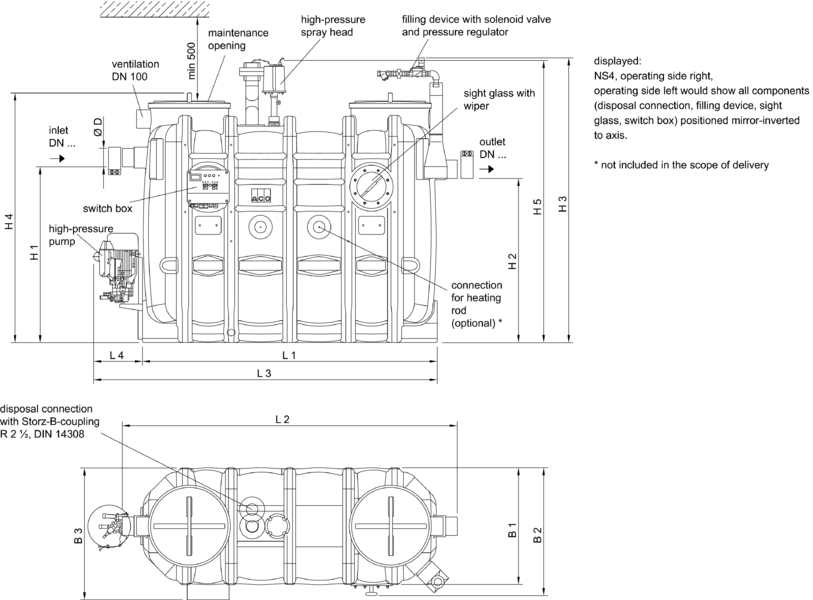

Item numberNominal size Dimensions
L1L2L3L4H1H2H3H4H5B1B2B3D
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
3551.74.42NS 1110013001400300830760151013001500700770800110
3552.74.42NS 21100130014003001055985171015001700700770800110
3553.74.42NS 31450165017503001055985171015001700700770800110
3554.74.42NS 41760200020603001055985171015001700700770800110
3555.74.42NS 5.51760200020603001250118019101700190095010201050160
3557.74.42NS 71960220022603001250118019101700190095010201050160
3558.74.42NS 8.52250248525503001250118019101700190095010201050160
3560.74.42NS 102450269027503001250118019101700190095010201050160
3551.74.32NS 1110013001400300830760151013001500700770800110
3552.74.32NS 21100130014003001055985171015001700700770800110
3553.74.32NS 31450165017503001055985171015001700700770800110
3554.74.32NS 41760200020603001055985171015001700700770800110
3555.74.32NS 5.51760200020603001250118019101700190095010201050160
3557.74.32NS 71960220022603001250118019101700190095010201050160
3558.74.32NS 8.52250248525503001250118019101700190095010201050160
3560.74.32NS 102450269027503001250118019101700190095010201050160

Operation side: Right-hand

Operation side: left

LipuJet-P-OA Extension stage 3

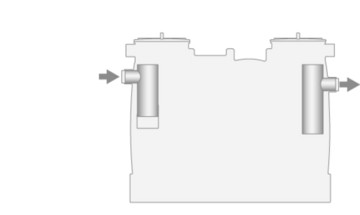

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning

LipuJet-P-OB

LipuJet-P-OA Extension stage 3

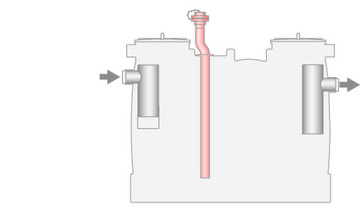

Features of upgrade level 1:

  • Connection for direct suction
  • Odour build-up only during cleaning

LipuJet-P-OD

LipuJet-P-OA Extension stage 3

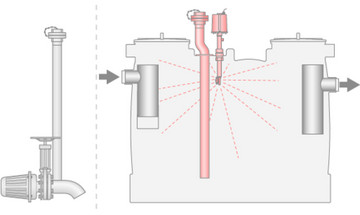

Features of upgrade level 2:

  • Connection for direct suction
  • High pressure cleaning operated manually
  • Optionally with disposal pump
  • No odour build-up

LipuJet-P-OM (without disposal pump)

LipuJet-P-OA Extension stage 3

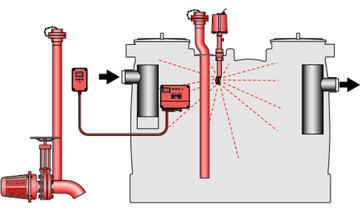

Features of upgrade level 3:

  • Connection for direct suction
  • Completely automatic programme
  • Optionally with drainage pump and remote control
  • No odour build-up

LipuJet-P-OAP (with disposal pump)

Grease layer thickness measuring device

Grease Layer Thickness Measuring Device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 22,5
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10

Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg

Remote control

Image 384042

Suitable for
  • Grease separator
    • LipuJet-P OA/OAP/RA/RAP
    • LipuJet-S OA/OAP/RA/RAP
    • LipuMax-P-DA
    • LipuSmart-P-OA/OAP
  • Starch separator FapuJet

Description
  • For internal fitting or fitting in connection boxes
  • Control line without protective conductor on-site
    • Up to 50 m: 7 x 1.0 mm²
    • 50 – 200 m 7 x 1.5 mm²
  • Weight: 1 kg

Item no. 3300.11.50

Item no. 0150.59.89

ACO Ozone Generator

ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations

Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses

Message system with GSM module

0150.46 129588

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets

Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

Item no. 7980.90.00

Item no. 0150.80.14

Connection cable antenna GSM

Image 694390

Suitable for
  • GSM - Modul

Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Heating rod

Heating Rod

Suitable for
  • Grease separators

Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg

Item no. 0150.83.86

Item no. 7300.01.00

Connection box

Image 36740

Suitable for
  • Grease separators
  • Starch separators
  • LipuLift-P-D/-DA/-DAP

Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg

In-wall frame

Image 36738

Suitable for
  • Connection box
    • 7601.80.20
  • LipuLift-P-D/-DA/-DAP

Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg

Item no. 7601.80.20

Item no. 7601.80.21

Storz coupling for swinging gas lines

Image 228952

Suitable for
  • For installation in connection box art. no. 7601.80.22

Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg

Connection box

Image 36740

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
  • LipuLift-P-D/-DA/-DAP

Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg

Item no. 0155.32.09

Item no. 7601.80.22

In-wall frame

Image 36738

Suitable for
  • Connection box
    • 7601.80.22
  • LipuLift-P-D/-DA/-DAP

Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg

Connection box

Image 276432

Suitable for
  • Grease separator
  • Starch separators
  • LipuLift-P-D/-DA/-DAP

Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg

Item no. 7601.80.23

Item no. 7601.80.24

In-wall frame

Image 276434

Suitable for
  • Connection box
    • 7601.80.24
  • LipuLift-P-D/-DA/-DAP

Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation

Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg

Item no. 7601.80.25

Item no. 0150.45.23

Sampling pot DN 100

Sampling Pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1

Description
  • For installation of horizontal pipes DN 100 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Sampling pot DN 150

Sampling Pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2

Description
  • For installation of horizontal pipes DN 150 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg

Item no. 3300.09.11

Item no. 3300.09.21

Sampling pot DN 100

Sampling Pot DN 150 - V

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1

Description
  • For installation in vertical pipes DN 100 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Sampling pot DN 150

Sampling Pot DN 150 - V

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2

Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg

Item no. 3300.10.11

Item no. 3300.10.21

Coarse trap DN 100

Coarse Trap DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1

Description
  • For installation in vertical pipes DN 100 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.7 kg

Coarse trap DN 150

Coarse Trap DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2

Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 12.6 kg

Item no. 3667.00.04

Item no. 3667.00.05

Stop valve

Stop Valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation

Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 100
  • Length (L): 50 mm
  • Spindle travel (H1 – H2): 365 – 465 mm
  • Manual wheel diameter: 200 mm
  • Weight: 15 kg

Stop valve

Stop Valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation

Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 150
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 478 – 639 mm
  • Manual wheel diameter: 200 mm
  • Weight: 29.4 kg

Item no. 7602.00.12

Item no. 7604.00.12

Flange connection part

Flange Connection Part - R
Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 100
  • Length (L): 75 mm
  • Weight: 6.5 kg

Flange connection part

Flange Connection Part - R
Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 150
  • Length (L): 75 mm
  • Weight: 10 kg

Item no. 7602.00.13

Item no. 7604.00.13

Inlet valve DN 100

Inlet Valve DN 150

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Typ 2 and 4
  • LipuMobil-P – Type 0.5

Description
  • Made of PVC
  • 110 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 176 x 330 mm (L x H)
  • Weight: 3.1 kg

Inlet valve DN 150

Inlet Valve DN 150

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Type 7 – Type 10

Description
  • Made of PVC
  • 160 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 226 x 510 mm (L x H)
  • Weight: 7 kg

Item no. 0175.13.84

Item no. 0175.13.85
