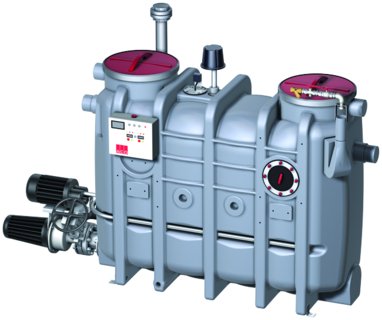

LipuJet-P-OMP Extension Stage 2 with Disposal Pump

  • Grease separator plant as per DIN EN 1825
  • For indoors installation – frost free
  • With integrated sludge trap
  • Operating side: right/left
  • Draining connection, fire hose quick coupling B 2½"
  • Suction and emptying sump with drain plug socket 1"
  • Inspection window with wiper
  • Manual operation of the high pressure internal cleaning with pump
    • Nominal pressure: 175 bar
    • Capacity: 13 l/min
    • Chopping, mixing, rinsing in one process
  • Standard control with group fault reporting
  • Disposal pump with free flow impeller
    • Motor power: 3.0 kW/2850 rpm
    • Delivery performance: 20 m³/h at 1 bar medium delivery head
  • Stop valve upstream of disposal pump
  • Odour-proof maintenance opening, diameter: 450 mm
  • Filling device with ball valve (connection ¾") for manual refilling
  • Electrical connector: 400 V/50 Hz/6.9 kW
  • System ACO Passavant
    • Building Supervisory Authority approval Z‑54.1‑414
Operation side: Right-hand

Nominal capacityNominal widthContentsWeightItem number
Sludge trapGrease storeOverallEmptyFull
NS 1DN 1001061003201774973571.84.41
NS 2DN 1002101004401826223572.84.41
NS 3DN 1003001506301948243573.84.41
NS 4DN 10040020083021010403574.84.41
NS 5.5DN 150725360143028617163575.84.41
NS 7DN 150800400160030519053577.84.41
NS 8.5DN 150940475190032522253578.84.41
NS 10DN 1501000520200033723373580.84.41
  • Proven stability: 25 years
  • Odour-free emptying, cleaning and filling
  • Hydromechanical high-pressure cleaning – only a cold-water connection required
  • Upgrade to level 3 possible
  • Minimises disposal and maintenance costs thanks to economic step increases in nominal size
  • Small delivery dimensions
  • Low weight

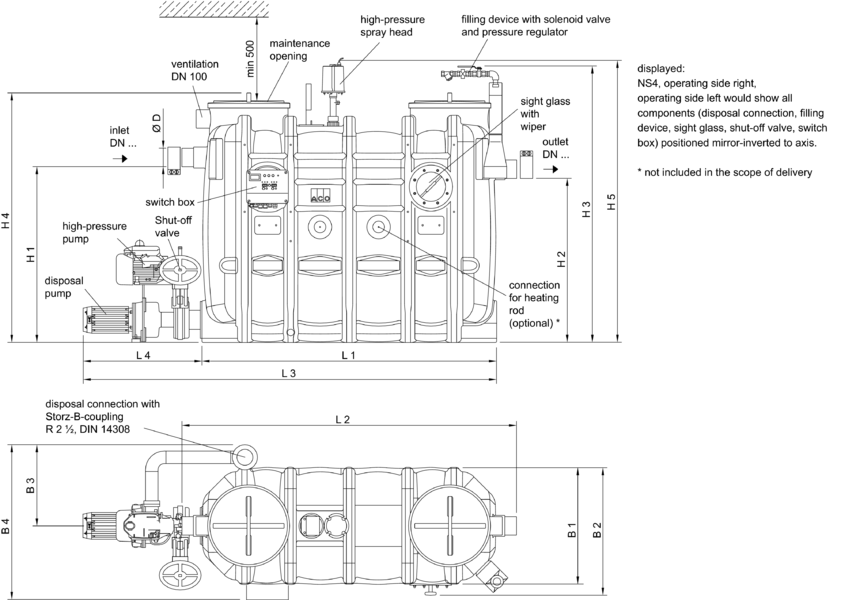

Nominal capacityDimensions
NS 1110013001800700830760148013001500700770500930110
NS 21100130018007001055985168015001700700770500930110
NS 31450165021507001055985168015001700700770500930110
NS 41760200024607001055985168015001700700770500930110
NS 5.51760200024607001250118018801700190095010206251180160
NS 71960220026607001250118018801700190095010206251180160
NS 8.52250248529507001250118018801700190095010206251180160
NS 102450269031507001250118018801700190095010206251180160

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning

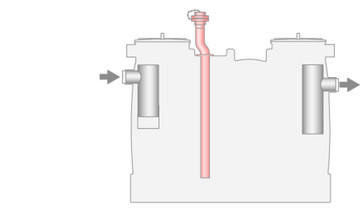

Features of upgrade level 1:

  • Connection for direct suction
  • Odour build-up only during cleaning
