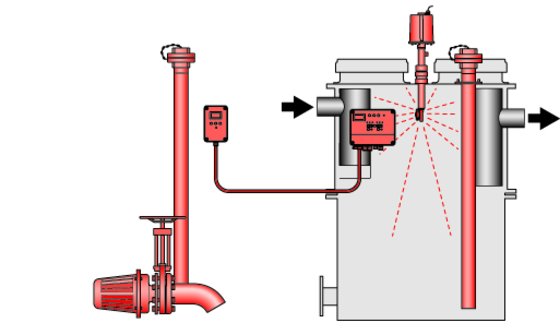

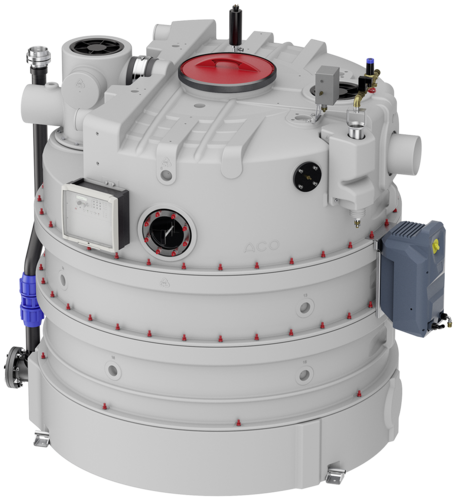

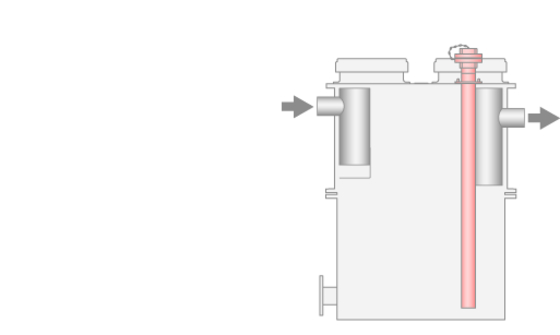

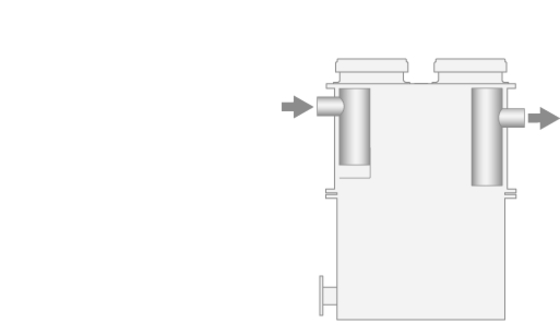

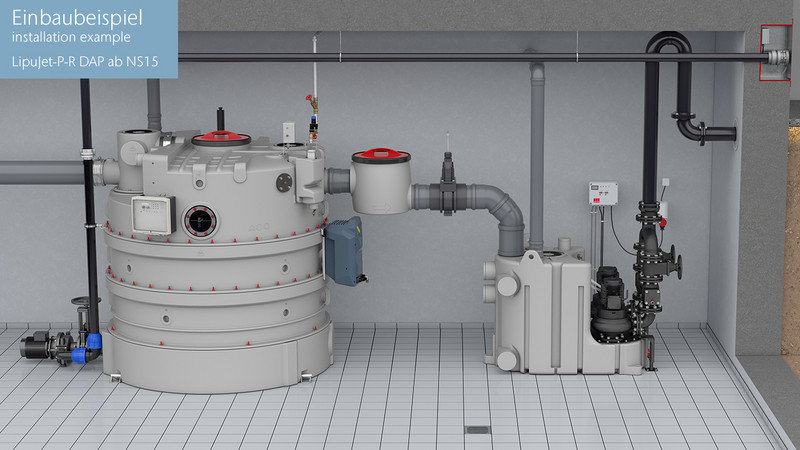

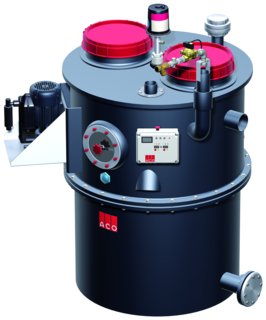

LipuJet-P-RA extension stage 3

Product benefits

  • Easy to transport and assemble when bringing-in in individual segments
  • Optimum insertion dimensions
  • Easy handling thanks to lightweight individual segments (100 kg)
  • Rotatable inlet fitting and plug-in foul air trap
  • Integrated slant for easier disposal for optimized emptying
  • Emptying, cleaning and filling without odour nuisance
  • Individually adjustable pre- and after-cleaning times
  • Hydromechanical high-pressure interior cleaning – cold water connection only necessary

Product information

  • Grease separator according to EN 1825 - Nominal Sizes (5,5-22.5)
  • With integrated sludge trap

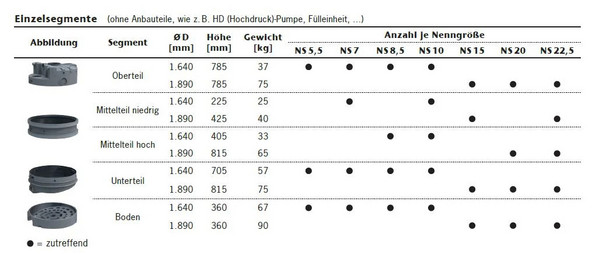

  • Container made of polyethylene, in segment construction
  • For indoor installation – frost-free
  • Suction and drainage sump
  • Odour-tight maintenance opening (clear width Ø450 mm)
  • Odour-tight inspection opening through Inlet and outlet
  • Central connection for direct suction with fixed coupling and blind coupling
  • Inspection window with wiper

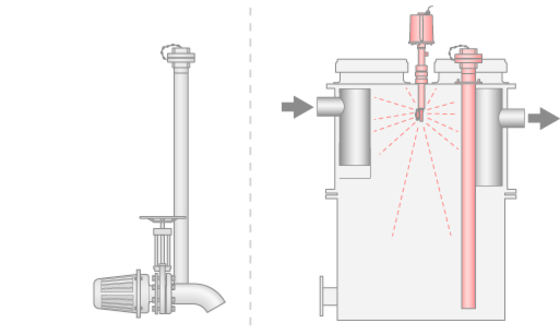

  • High-pressure internal cleaning:
    • Motor-driven high-pressure spray head (360° cleaning over two axles)
    • HP (high pressure) pump (nominal pressure 175 bar)
  • Filling unit (components with DVGW and KIWA approvals) for automatic refilling:
    • Free-flow valve
    • Pressure reducer with dirt trap
    • Solenoid valve
    • Odour trap
  • Level measurement via pneumatic pressure measurement including bubbler injection:
    • Pneumatic box with miniature compressor and pressure sensor
    • Pitot tube
  • Control with connection cable 1.5  m
  • And CEE plug 16 A including phase changer, protection class IP 54
  • Pipe connectors on the inlet and outlet with transition seal for pipe OD 200 mm (NS 15-22.5) / OD 160mm (NS 5.5-10)
  • Execution right or left / following components are to be operated on the right or left to the central axis:
    • Inspection window
    • Direct suction
    • Filling unit
    • High pressure spray head
    • HP pump
    • Pneumatic box
    • Control
  • Declaration of Performance (DoP) No: BD-G1-1025
  • Connections:
    • Inlet and outlet OD 200mm (NS 15-22.5) / OD 160mm (NS 5.5-10)
    • Vent DN100/OD110 mm
    • Direct suction with fixed coupling Storz-B/2½" and blind coupling
    • Water connection filling unit Rp ¾"
    • Bottom outlet Rp1"
  • Electrical connection:
    • 400V/50Hz/16A/4.2 kW
    • Fusing: 3x16A (slow) or according to local conditions

Operation side: Right-hand

Nominal sizeNominal widthContentsWeightItem number
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 15DN 2001550600313033034603515.53.00
NS 20DN 2002020800407035044203520.53.00
NS 22.5DN 20025501000500040054003525.53.00

Operation side: Left

Nominal sizeNominal widthContentsWeightItem number
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 15DN 2001550600313033034603515.53.10
NS 20DN 2002020800407035044203520.53.10
NS 22.5DN 20025501000500040054003525.53.10

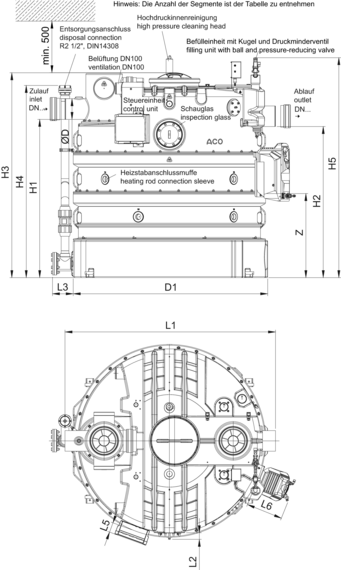

Item numberNominal size Dimensions
L1L2L3L5L6H1H2H3H4H5DD1Z/Anzahl Segmente
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
3515.53.00NS 152500652101603601535146519901870215020018904
3515.53.10NS 152500652101603601535146519901870215020018904
3520.53.00NS 202500652101603601925185523802260254020018904
3520.53.10NS 202500652101603601925185523802260254020018904
3525.53.00NS 22.52500652101603602305223527602640291020018905
3525.53.10NS 22.52500652101603602305223527602640291020018905

Operation side: Right-hand

Operation side: Left

Inlet valve DN 150

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Type 7 – Type 10

Description
  • Made of PVC
  • 160 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 226 x 510 mm (L x H)
  • Weight: 7 kg

Inlet valve DN 200

Suitable for
  • Wastewater lifting plant
    • Muli-Star DDP 1/2
  • Grease separator made of polyethylene
    • From NS 15

Description
  • Made out of PVC
  • Push socket 200 mm with lip sealing ring on both sides
  • Total dimensions: 264 x 637 mm (L x H)
  • Weight: 8.4 kg

Item no. 0175.13.85

Item no. 0170.20.83


Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2

Description
  • For installation of horizontal pipes DN 150 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5

Description
  • For installation of horizontal pipes DN 200 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.3 kg

Item no. 3300.09.21

Item no. 3300.09.31


Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2

Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5

Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Item no. 3300.10.21

Item no. 3300.10.31


Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 22,5
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10

Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg

Coarse trap DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2

Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 12.6 kg

Item no. 3300.11.50

Item no. 3667.00.05


Coarse trap DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5

Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.9 kg

Heating rod

Suitable for
  • Grease separators

Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg

Item no. 3667.00.06

Item no. 7300.01.00


Connection box

Suitable for
  • Grease separators
  • Starch separators
  • LipuLift-P-D/-DA/-DAP

Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
  • LipuLift-P-D/-DA/-DAP

Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg

Item no. 7601.80.20

Item no. 7601.80.21


Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation

Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 150
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 478 – 639 mm
  • Manual wheel diameter: 200 mm
  • Weight: 29.4 kg

Stop valve

Suitable for
  • Grease separator for free-standing installation
    • NS 15-20

Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 200
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 542 – 743 mm
  • Manual wheel diameter: 250 mm
  • Weight: 36 kg

Item no. 7604.00.12

Item no. 7610.00.12


Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 150
  • Length (L): 75 mm
  • Weight: 10 kg

Flange connection part

Suitable for
  • Stop valve DN 200
    • 7610.00.12

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 200
  • Length (L): 120 mm
  • Weight: 12.9 kg

Item no. 7604.00.13

Item no. 7610.00.13


Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
  • LipuLift-P-D/-DA/-DAP

Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
  • LipuLift-P-D/-DA/-DAP

Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg

Item no. 7601.80.22

Item no. 7601.80.23


Remote control

Suitable for
  • Grease separator
    • LipuJet-P OA/OAP/RA/RAP
    • LipuJet-S OA/OAP/RA/RAP
    • LipuMax-P-DA
    • LipuSmart-P-OA/OAP
  • Starch separator FapuJet

Description
  • For internal fitting or fitting in connection boxes
  • Control line without protective conductor on-site
    • Up to 50 m: 7 x 1.0 mm²
    • 50 – 200 m 7 x 1.5 mm²
  • Weight: 1 kg

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22

Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg

Item no. 0150.59.89

Item no. 0155.32.09


Connection box

Suitable for
  • Grease separator
  • Starch separators
  • LipuLift-P-D/-DA/-DAP

Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
  • LipuLift-P-D/-DA/-DAP

Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg

Item no. 7601.80.24

Item no. 7601.80.25


ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations

Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets

Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

Item no. 7980.90.00

Item no. 0150.80.14


Connection cable antenna GSM

Suitable for
  • GSM - Modul

Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation

Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg

Item no. 0150.83.86

Item no. 0150.45.23
